Description

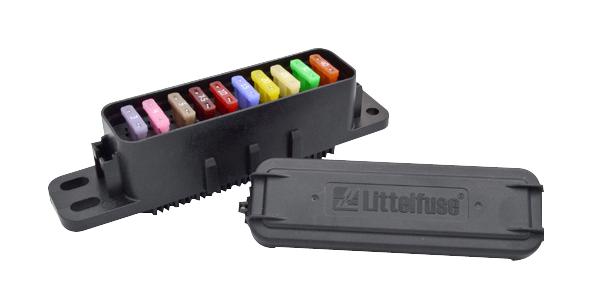

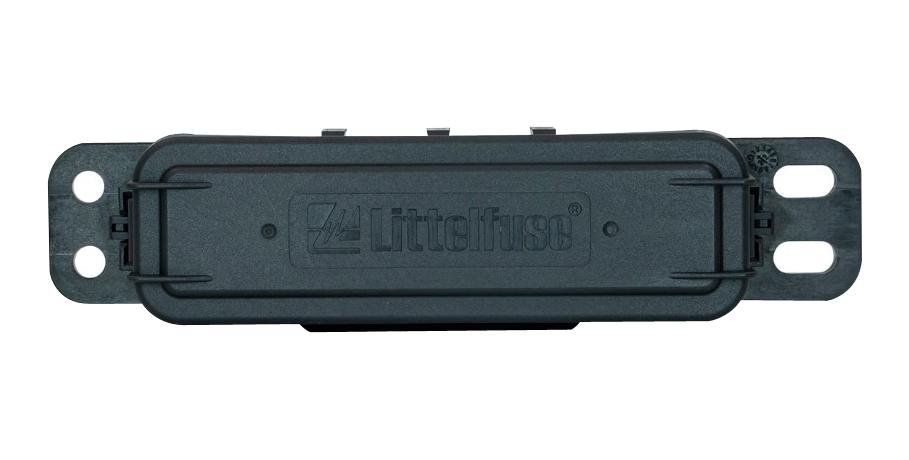

HWA20 fuseholder complete assembly with TPAs is a compact, sealed (IP67) unit with input and output connections electronically isolated. Enables the user to customize the circuitry. High-density of fuses, with total combined amperage up to 210A. Dovetail slots on the sides of the box enable multiple units to be physically connected to each other, and to other Littelfuse fuseholders.
- Compact Hard-Wired Fuseholder Holds Up To 10 ATO® Fuses
- IP67 sealed units can be installed virtually anywhere on vehicle, stand upto roadsplash & salt spray
- Easy to connect
- Dimension is 161 x 40 x 52mm (6.3 x 1.6 x 2.0")
Warnings
Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.
Product details
| Fuse Holder Type: Automotive Blade Fuse Holder |
| Fuse Current: 210A |
| Fuse Size Held: ATO |
| Holder Terminals: - |
| No. of Fuses: 10Fuses |
| Product Range: HWA20 |
| Voltage Rating VAC: - |
| Voltage Rating VDC: 32V |
Other details
| Brand | LITTELFUSE |
| Part Number | PDM61001ZXM |
| Quantity | Each |
| Technical Data Sheet EN |  |
