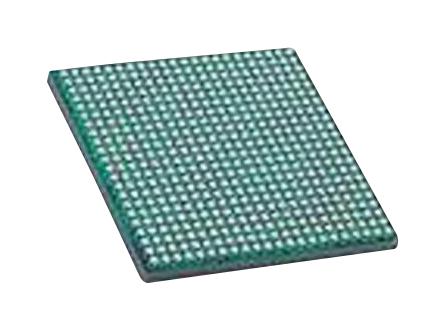

MICROCHIP MPF300T-1FCG484I FPGA, Flash, 28nm (CMOS), DLL, PLL, 244 I/O, 300000 Macrocells, FCBGA-484, PolarFire MPF300T Series

MPF300T-1FCG484I is a PolarFire® non-volatile FPGA device. It is built on state-of the-art 28nm non-volatile process technology. Cost-optimized PolarFire FPGA deliver the lowest power at mid-range densities. It includes cost-optimized core devices for applications that don�t require high-speed serial transceivers. It offers fast I/O and configuration flexibility to meet diverse performance, power, and cost requirements. The device is ideal for a wide range of applications within wireline access networks and cellular infrastructure, defence and commercial aviation markets, as well as industrial automation and IoT markets.

• 64 × 12 two-port ?RAM block implemented as an array of latches
• 18×18 math block with a pre-adder, a 48bit accumulator, and an optional 16 deep x 18 coefficient ROM
• Built-in ?PROM, modifiable at program time, readable at run time for user data storage
• Integrated dual PCIe for up to ×4 Gen2 endpoint (EP) and root port (RP) designs
• Low-power phase-locked loops (PLLs) and delay-locked loops (DLLs) for high precision and low jitter
• Cryptography Research Incorporated (CRI)-patented differential power analysis (DPA) bitstream
• 300 K logic elements (4 LUT + DFF), 924 math blocks (18 x 18 MACC)
• 952 LSRAM blocks (20kbit), 2772 ?SRAM blocks (64 x 12)
• 20.6 total RAM (Mbits), 459 ?PROM (Kbits)
• Industrial temperature range from -40°C to 100°C, 484-pin FCBGA package
