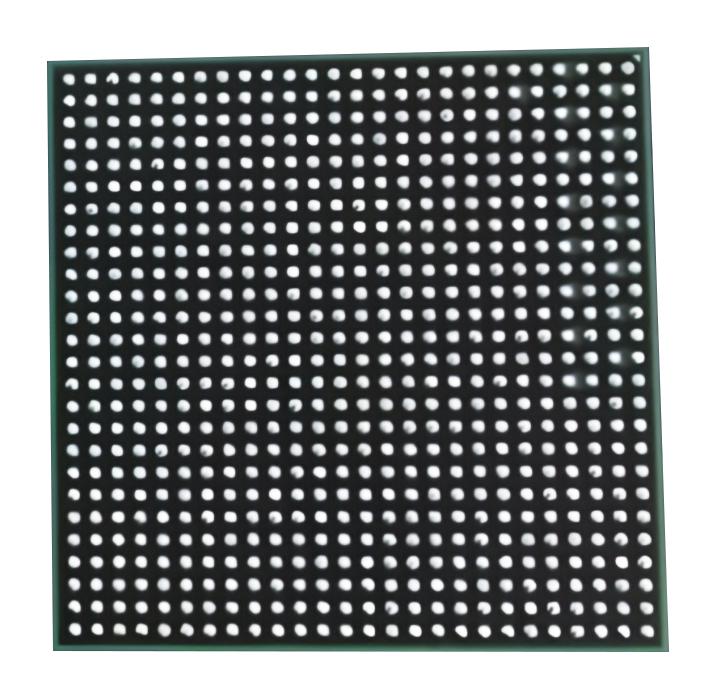

AMD XC7A75T-2FGG484C FPGA, Artix-7, MMCM, PLL, 285 I/O's, 628 MHz, 75520 Cells, 950 mV to 1.05 V, FCBGA-484, NCNR

XC7A75T-2FGG484C is an Artix®-7 FPGA IC. It addresses the complete range of system requirements, ranging from low-cost, small form factor, cost-sensitive, high-volume applications to ultra-high-end connectivity bandwidth, logic capacity, and signal processing capability for the most demanding high-performance applications. It is optimized for low-power applications requiring serial transceivers and high DSP and logic throughput. Provides the lowest total bill of materials cost for high-throughput, cost-sensitive applications.

• 36KB dual-port block RAM with built-in FIFO logic for on-chip data buffering
• Integrated block for PCI Express® (PCIe), for up to x8 Gen3 endpoint and root port designs
• 6.6Gb/s transceiver speed, 211Gb/s serial bandwidth
• x4 Gen2 PCIe interface, 1,066Mb/s memory interface
• 1.2V to 3.3V I/O voltage
• 75,520 logic cells
• 11,800 slices, 892KB max distributed RAM configurable logic blocks (CLBs)
• 210 (18KB), 105 (36KB), 3,780 max (KB) block RAM blocks
• FCBGA484 package
• Commercial temperature range from 0°C to +85°C

Warnings

Warranty Information: Xilinx semiconductor products have a warranty of twelve (12) months from date of purchase. Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.

Notes

Please note this product is Non-Cancellable and Non-Returnable (NCNR). Warranty Information: Xilinx semiconductor products have a warranty of twelve (12) months from date of purchase.
