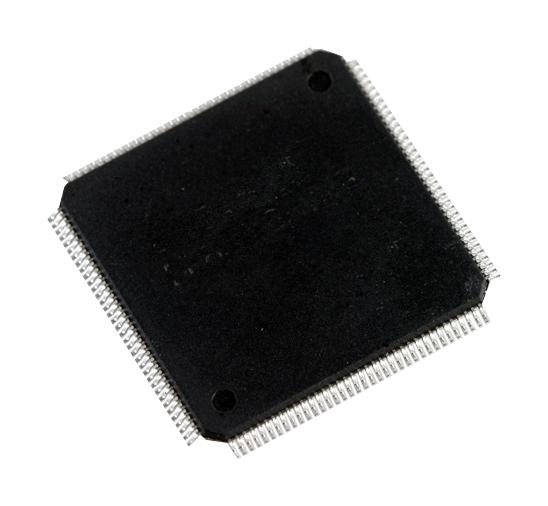

AMD XC6SLX4-2TQG144C FPGA, Spartan-6, DCM, PLL, 102 I/O's, 375 MHz, 3840 Cells, 1.14 V to 1.26 V, TQFP-144, NCNR

XC6SLX4-2TQG144C is a Spartan®-6 FPGA IC. It provides leading system integration capabilities with the lowest total cost for high-volume applications. It offers a new, more efficient, dual-register 6-input lookup table (LUT) logic and a rich selection of built-in system-level blocks. It offers the best solution for high-volume logic designs, consumer-oriented DSP designs, and cost-sensitive embedded applications.

• Designed for low cost, multiple efficient integrated blocks, staggered pads
• Optimized selection of I/O standards, high-volume plastic wire-bonded packages
• Low static and dynamic power, 45nm process optimized for cost and low power
• Hibernate power-down mode for zero power
• Suspend mode maintains state and configuration with multi-pin wake-up, control enhancement
• Faster embedded processing with enhanced, low cost, MicroBlaze� soft processor
• Industry-leading IP and reference designs
• 3,840 logic cells, 600 slices, 4,800 flip-flops, 75 max distributed RAM (Kb)
• TQFP144 package
• Commercial temperature range from 0°C to +85°C

Warnings

Warranty Information: Xilinx semiconductor products have a warranty of twelve (12) months from date of purchase.

Notes

Please note this product is Non-Cancellable and Non-Returnable (NCNR). Warranty Information: Xilinx semiconductor products have a warranty of twelve (12) months from date of purchase.
