Product Overview

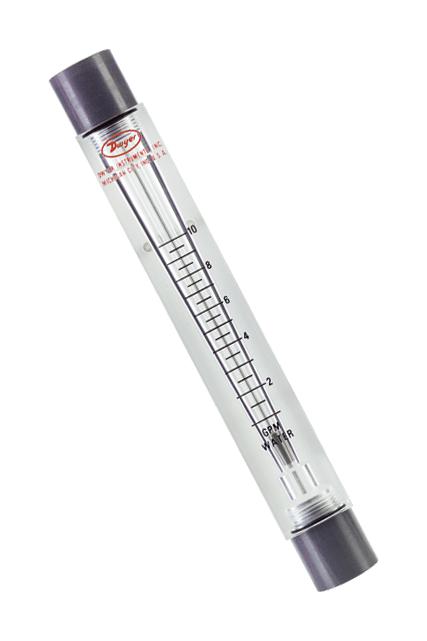

VFC-143-EC is a series VFC Visi-Float® acrylic flowmeter. It is a direct reading, precision machined, clear acrylic body flowmeter suitable for both gas and liquid applications. It is used in medical equipment, laboratory equipment, air samplers, gas analysers, pollution monitors, chemical injectors, cabinet purging, remediation and osmosis skids applications.
- 127mm scale flowmeter, 1˝ female NPT in-line end connections
- Flowmeter range 2-20GPM water
- Bodies are cut and precision machined from solid, clear acrylic block
- White background allows for better visibility of the float increasing reading accuracy
- Direct reading scales are hot stamped into plastic eliminating need for troublesome conversions
- Precision machined tapered bore enables high repeatability
- Temperature and pressure limits of 100psig (6.9bar) at 120°F (48°C)
- Mount in vertical position
Product details
| Sensor Type |
Flowmeter |
| Flow Rate Max |
20l/min |
| Operating Pressure Max |
100psi |
| Supply Voltage Max |
- |
| Accuracy |
± 2% |
| Process Connection Size |
1" |
| Pipe Size |
- |
| Operating Temperature Min |
- |
| Product Range |
Visi-Float VFC Series |
| Pressure Max |
100psi |
| Flow Rate Min |
2l/min |
| Operating Pressure Min |
- |
| Supply Voltage Min |
- |
| Accuracy % |
2% |
| Media Type |
0 |
| Process Connection Type |
NPT Female |
| Sensor Mounting |
Panel Mount |
| Operating Temperature Max |
- |
| SVHC |
No SVHC (04-Feb-2026) |
| Port Size |
25.4mm |
Other details
| Brand |
DWYER |
| Part Number |
VFC-143-EC |
| Quantity |
Each |
