Product Overview

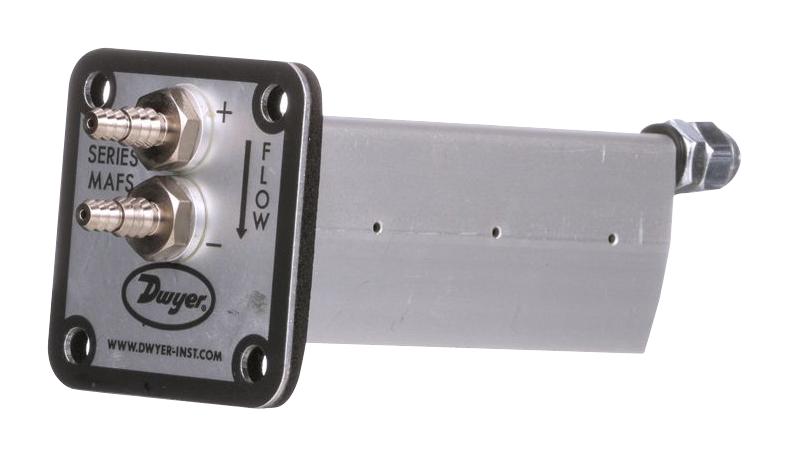

MAFS-1500MM is a series MAFS metal averaging flow sensor ideal for use with Dwyer® precision air velocity gauges, transmitters and switches. The series MAFS uses evenly distributed total and static pressure measuring points to deliver an accurate measurement of velocity pressure in a duct. Typical applications include VAV air flow measurement, fume hood exhaust flow verification and HVAC retrofit air flow measurement.
- 1500mm probe length
- Blade design limits disruption of air stream
- Lightweight aluminium construction
- Flange mount for rectangular or square ducts
- Blade profile provides enhanced performance and minimal flow disruption
- Minimum design flow of 400FPM (2m/s)
- Maximum design flow of 12,000FPM (60.91m/s)
- Dual barb for 3/16" or 1/4" ID tubing process connections
- Aluminium AA6063 wetted materials
- Maximum temperature is 400°F (204°C) and gasket: -31 to 230°F (-35 to 110°C)
Product details
| Flow Rate Min |
- |
| Supply Voltage Min |
- |
| Product Range |
MAFS Series |
| Port Size |
6.35mm |
| Flow Rate Max |
- |
| Supply Voltage Max |
- |
| SVHC |
No SVHC (04-Feb-2026) |
Other details
| Brand |
DWYER |
| Part Number |
MAFS-1500MM |
| Quantity |
Each |
| Technical Data Sheet (284.63KB) EN |
View or download |
