Product Overview

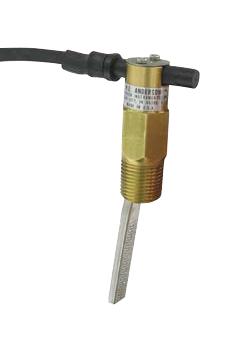

V10 is a Series V10 Flotect® mini-size flow switch. It is designed to provide inexpensive, reliable monitoring of the presence or absence of flow in a system. Switch can be installed in any position but the actuation/deactuation flow rates are based on horizontal pipe runs and are nominal values. Typical applications include proving flow in boilers, hot water heaters, and chillers, protects pumps, motors and other equipment against low or no flow, automatically starts auxiliary pumps and engines.
- Brass body material
- NPT connection type
- Normally open or closed switch configuration
- Temperature limit of 200°F (93°C)
- Superior performance w/ rugged magnetically-actuated switch design, hermetically sealed reed switch
- Save time, money on maintenance w/ electrical assembly that can be easily replaced w/o removing unit
- Solves application needs with full size
- Weatherproof, meets NEMA 4X (IP6)
- Vane is trimmable
- Nylon switch enclosure
Product details
| Flow Switch Type |
SPST-NO, SPST-NC |
| Flow Rate Max |
- |
| Operating Pressure Max |
1000psi |
| Supply Voltage Max |
- |
| Switching Voltage AC Max |
- |
| Media Type |
Alcohol, Argon, Nitrogen, Oil, Water |
| Process Connection Type |
NPT Male |
| Housing Material |
Brass |
| Operating Temperature Max |
93°C |
| Qualification |
- |
| Port Size |
12.7mm |
| Supply Voltage DC Max |
24V |
| Flow Rate Min |
- |
| Operating Pressure Min |
- |
| Supply Voltage Min |
- |
| Contact Rating |
1.5A |
| Switching Voltage DC Max |
24V |
| Process Connection Size |
1/2" |
| Pipe Size |
1/2 to 2" |
| Operating Temperature Min |
- |
| Product Range |
FLOTECT V10 Series |
| SVHC |
Lead (04-Feb-2026) |
| Pressure Max |
1000psi |
Other details
| Brand |
DWYER |
| Part Number |
V10 |
| Quantity |
Each |
| Technical Data Sheet (511.71KB) EN |
View or download |
