Description
Product Overview

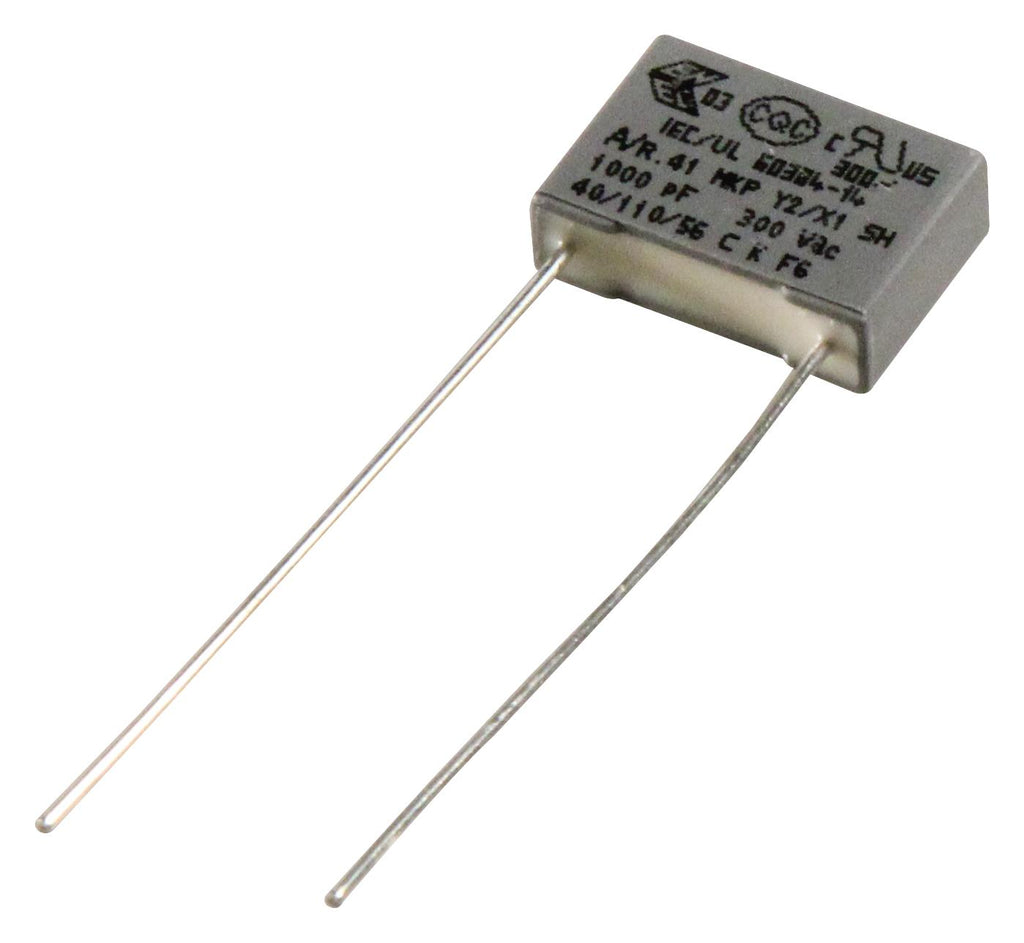

The R41 Series is constructed of metallized polypropylene film encapsulated with self-extinguishing resin box meeting the requirements of UL 94 V�0. Automotive Grade devices are available (up to 22.5 mm Lead Spacing) and meet the demanding Automotive Electronics Council's AEC�Q200 qualification requirements. For use in electromagnetic interference (EMI) suppression filter in "line-to-ground" and "across-the-line" applications requiring Y2/X1 safety classification. Suitable for use in situations where failure of the capacitor could lead to danger of electric shock. Not for use in "series with mains" type applications.
- Approvals: ENEC, UL, cUL, CQC / Rated voltage: 300 VAC 50/60 Hz
- Class Y2 / X1 (IEC 60384-14)
- Capacitance range: 0.001 � 1 ?F / Capacitance tolerance: ±20%, ±10%
- Lead spacing: 10 � 37.5 mm
- Climatic category: 40/110/56, IEC 60068�1 / Operating temperature range of ?40?C to +110?C
- Tape and reel in accordance with IEC 60286�2
- RoHS Compliant and lead-free terminations
- 100% screening factory test at 5,000 VDC/2,500 VAC
- Self-healing properties
- Automotive (AEC�Q200) grades available up to 22.5 mm Lead Spacing
Product details
Other details
| Brand | KEMET |
| Part Number | R413R34705000M |
| Quantity | Each |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 375.06 |
| 3-5 | ₹ 371.23 |
| 5-10 | ₹ 363.57 |
| 10+ | ₹ 355.92 |
Bulk discount will be automatically applied during checkout based on quantity.
