Description

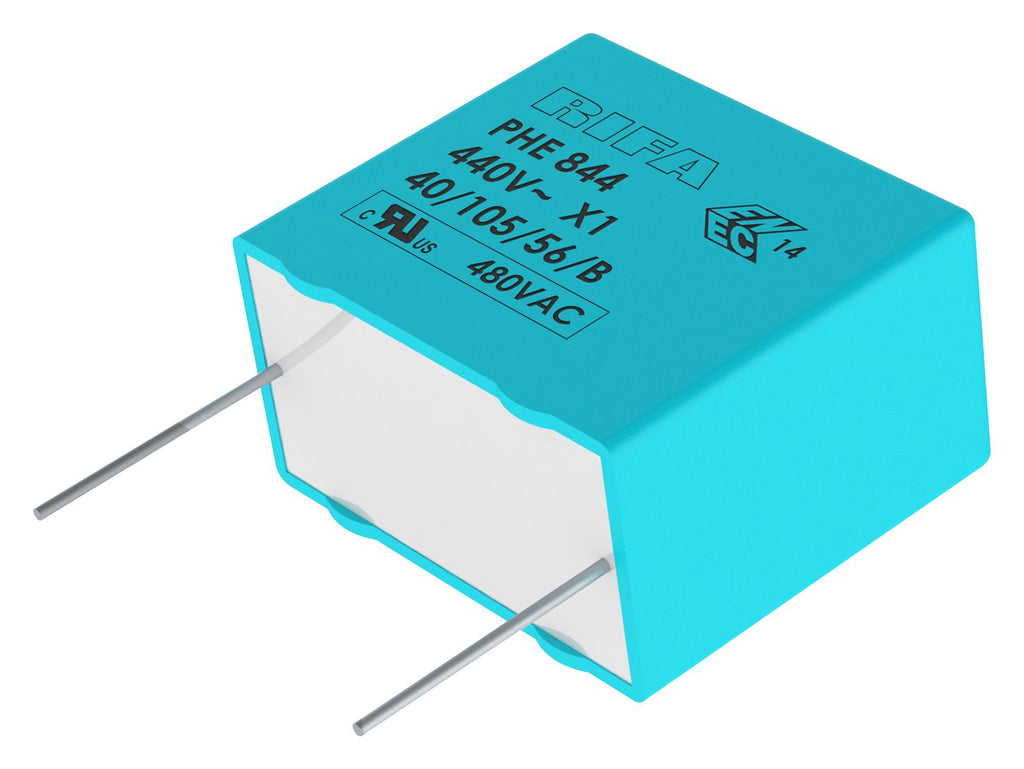

The PHE844 Series is constructed of metallized polypropylene film encapsulated with self-extinguishing resin in a box of material meeting the requirements of UL 94 V-0.For use as a electromagnetic interference (EMI) suppression filter in across-the-line applications requiring X1 safety classification. Suitable for use in situations where failure of the capacitor would not lead to danger of electric shock.
- Approvals: ENEC, UL, cUL / Class X1 (IEC 60384-14)
- Rated Voltage: 440 VAC 50/60 Hz (ENEC), 480VAC 50/60 Hz (UL, cUL)
- Capacitance range: 0.1 - 2.2 µF / Capacitance tolerance: ±20%, ±10% / Lead spacing: 22.5 - 37.5 mm
- Climatic category 40/105/56/B, IEC 60068-1 / Operating temperature range of -40�C to +105�C
- Tape and reel in accordance with IEC 60286-2
- RoHS Compliant and lead-free terminations
- 100% screening factory test at 3000VDC
- Self-healing properties
Industrial, Consumer Electronics, Portable Devices, Power Management
Other details
| Brand | KEMET |
| Part Number | PHE844RR7220MR06L2 |
| Quantity | Each |
| Technical Data Sheet EN |  |
| Product Change Notice EN | |
| CAD Multiple Formats EN | |
| Manufacturer Catalogue EN | |
