Description
Product Overview

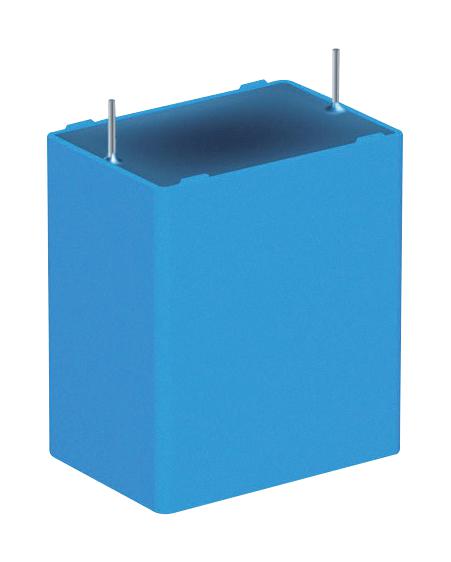

B32774H1225K000 is a MKP (Metallized polypropylene) DC link � high-density THB (B32774H) series film capacitor in a radial box case. Typical applications include frequency converters, industrial and high-end power supplies, solar inverters.
- Capacitance is 2.2µF
- AEC-Q200D compliant
- For severe ambient conditions and good self-healing properties
- High CV product, compact
- Low losses with high current capability
- High reliability and long useful life
- Over-voltage capability and extend voltage to 1600VDC
- Plastic case (UL 94 V-0) and epoxy resin sealing (UL 94 V-0)
- Climatic category (IEC 60068-1:2013): 40/105/56
- Max operating temperature of 105°C (case)
Product details
Other details
| Brand | EPCOS |
| Part Number | B32774H1225K000 |
| Quantity | Each |
| Technical Data Sheet EN |  |
