Description

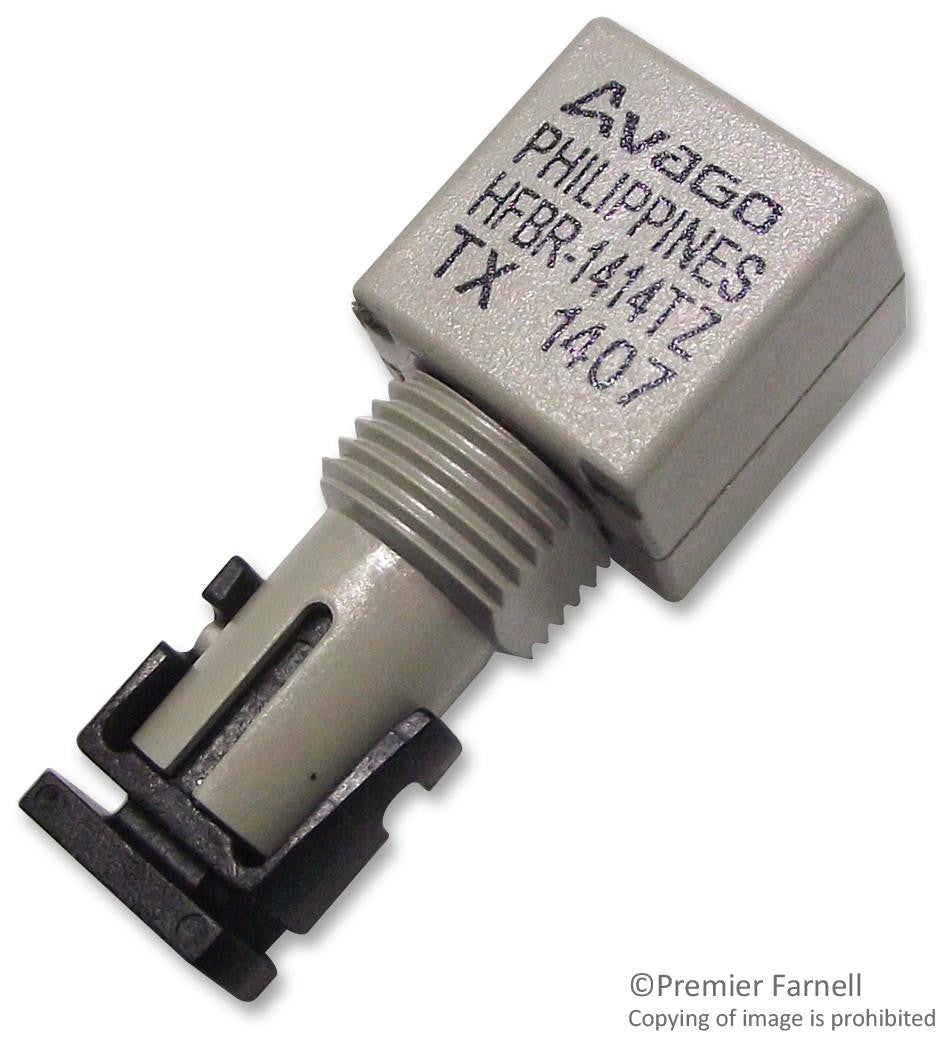

The HFBR-1414TZ is a 160Mbaud 820nm miniature link high power Fibre Optic Transmitter which is designed to provide cost-effective, high performance fibre optic communication links for information systems and industrial applications with link distances of several kilometres. This threaded port transmitter is compatible with popular "industry-standard" housed connector ST� and completely specified with multiple fibre sizes including 50/125, 62.5/125, 100/140 and 200�m.
- Meets IEEE 802.3 Ethernet and 802.5 token ring standards
- Repeatable ST connections within 0.2dB typical
- Unique optical port design for efficient coupling
- Pick and place, wave solderable
- No board mounting hardware required
- -40 to +85�C Wide operating temperature range
Applications
Communications & Networking, Fibre Optics, Computers & Computer Peripherals
Product details
| Data Rate Max | 160Mbaud |
| Forward Voltage | 1.84V |
| Forward Current If | 100mA |
| Signal Rate Max | 160Mbaud |
| Product Range | - |
| Fibre Optic Connector Type | ST |
| Reverse Voltage Vr | 3.8V |
| Data Transmission Distance | 2700m |
| Wavelength Typ | 820nm |
Other details
| Brand | BROADCOM LIMITED |
| Part Number | HFBR-1414TZ |
| Quantity | Each |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 3154.24 |
| 3-5 | ₹ 3122.05 |
| 5-10 | ₹ 3057.68 |
| 10+ | ₹ 2993.31 |
Bulk discount will be automatically applied during checkout based on quantity.
