| ₹ 219.48 includes GST and import duties. | |
| B2B customers can avail ₹ 33.47 ITC on this product | |
| 100% Secure Payments | 100% Genuine product |
Description

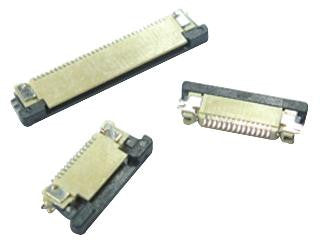

The 68712414022 is a 24-way 1-row ivory surface-mount horizontal top ZIF Connector, 0.5mm pitch. This WR-FPC series connector with tin-plated phosphor bronze contacts, LCP insulator, LCP actuator. It mates with 6876xxxxx002 and 6877xxxxx002.
- 0.5A Current rating
- 50VAC Voltage rating
- UL94V-0 Flammability rating
Applications
Industrial
Warnings
Don't pull the actuator too far otherwise the stop limit (hook on actuator) may be broken, don't keep conductor toward actuator, don't keep FFC inclined when insertion.
Product details
| Contact Material | Phosphor Bronze |
| Contact Plating | Tin Plated Contacts |
| Pitch Spacing | 0.5mm |
| Contact Termination Type | Surface Mount |
| No. of Contacts | 24Contacts |
| Product Range | - |
| FFC/FPC Thickness | 0.34mm |
| No. of Rows | 1 Row |
| Gender | Receptacle |
| Contact Position | Top |
Other details
| Brand | WURTH ELEKTRONIK |
| Part Number | 68712414022 |
| Quantity | Each (Supplied on Cut Tape) |
| Drawing EN |  |
| Product Change Notice EN | |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 215.09 |
| 3-5 | ₹ 212.9 |
| 5-10 | ₹ 208.51 |
| 10+ | ₹ 204.12 |
Bulk discount will be automatically applied during checkout based on quantity.
