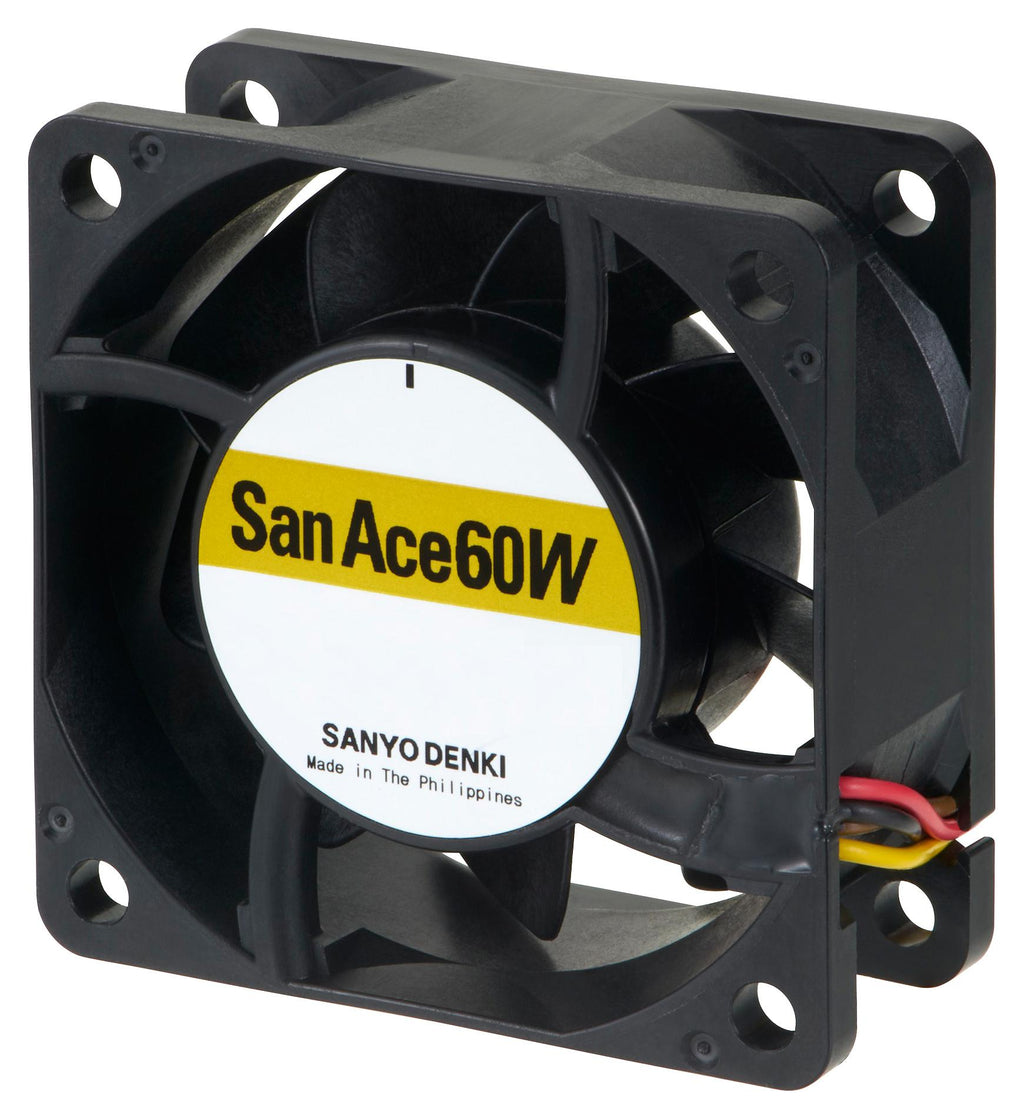

San Ace 60W 9WPA type splash proof fan. This fan delivers a maximum airflow of 1.52m3/min and a maximum static pressure of 357Pa. The PWM control function enables the control of fan speed, contributing to lowering noise and improving energy efficiency of devices.
- High airflow and high static pressure
- IP68-rated, water and dust protection
- Maintains stable operation even in harsh environments
- 24V rated voltage, 21.6V to 26.4V operating voltage range
- Operating temperature range from -20 to +70°C
- Expected life of 40000h/60°C (70000/40°C)
- Plastic (flammability: UL 94V-0) frame, plastic (flammability: UL 94V-0) impeller
- 100% PWM duty cycle, 0.46A rated current, 11.04W rated input
- 12000 min-1 rated speed, 56 SPL[dB(A)], size is 60 x 60 x 25mm
- UL, CSA and EN standards
Other details
| Brand |
SANYO DENKI |
| Part Number |
9WPA0624P4G001 |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
