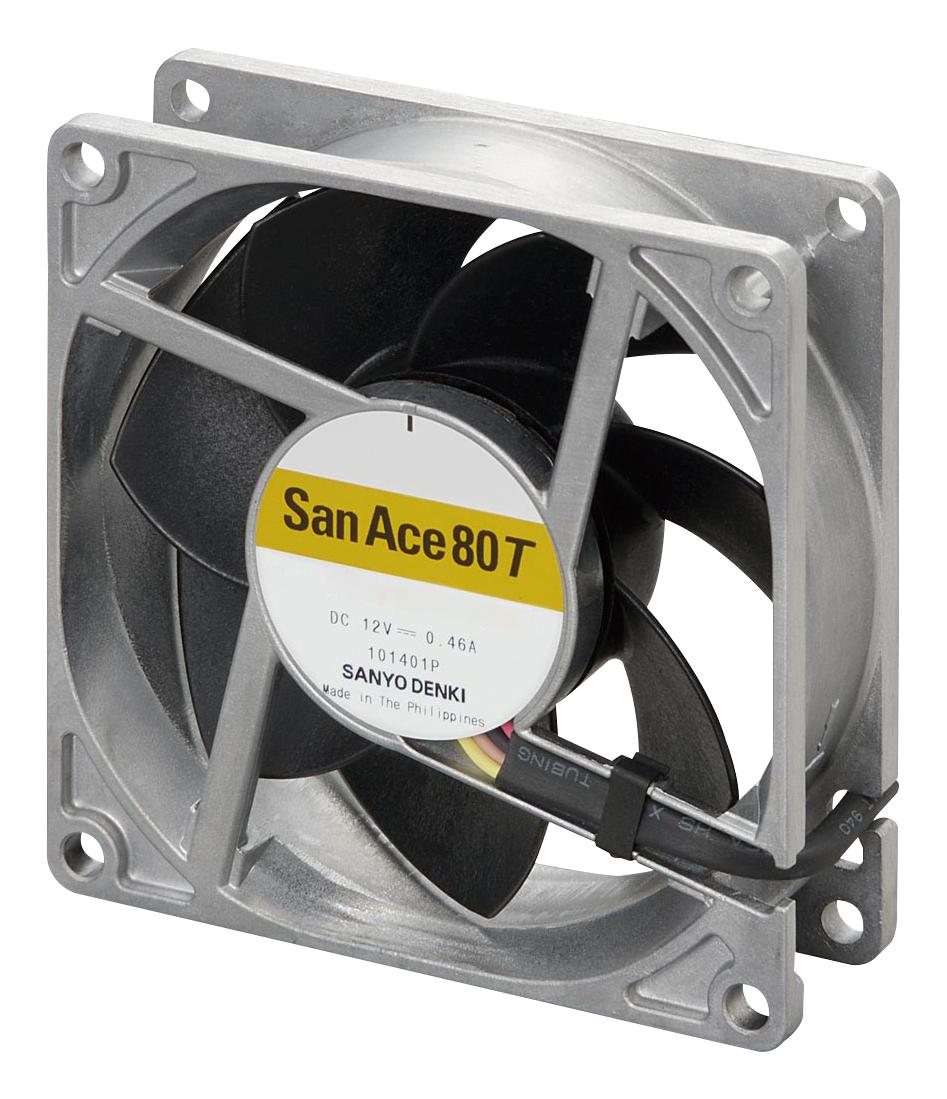

The San Ace 80T series 9GT type Wide Temperature Range DC Fan can be safely used in both low-temperature and high-temperature applications ranging from refrigerators and freezers to heat-generating lighting devices. The 9GT type series DC fans provides efficient cooling for devices with high quality and high reliability, overheating protection function. If the fan blades are restricted, an over-current occurs and leads to a rise in the fan coil temperature. This can result in reduced performance, damage or a fire. To prevent this from occurring, SANYO DENKI's fans incorporate an overheating protection function. If the fan blades are restricted, the coil current is cut off at regular cycles to prevent overheating of the coil. When the hindrance is removed, the fan restarts automatically. Wiring fans with sensors or PWM speed control function, connecting positive and negative leads in reverse may damage the fans.
- Burnout protection function at locked rotor condition
- Reverse polarity protection function
- 10MR at 500VDC Insulation resistance
- UL94V-1 Flammability rated plastic impeller and aluminium frame
- 40000/85°C Hours expected life
Applications
Industrial, Thermal Management, HVAC
Product details
| Supply Voltage |
12V |
| Current Type |
DC |
| Fan Frame Size |
80mm |
| External Depth |
25mm |
| Noise Rating |
46dBA |
| Flow Rate - Imperial |
65.7cu.ft/min |
| Flow Rate - Metric |
1.86m³/min |
| Bearing Type |
Ball |
| Power Connection Type |
4 Lead Wires, PWM Control, Sensor Output |
| Current Rating |
460mA |
| Product Range |
San Ace 80T Series |
| RoHS Phthalates Compliant |
To Be Advised |
Other details
| Brand |
SANYO DENKI |
| Part Number |
9GT0812P4S001 |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
