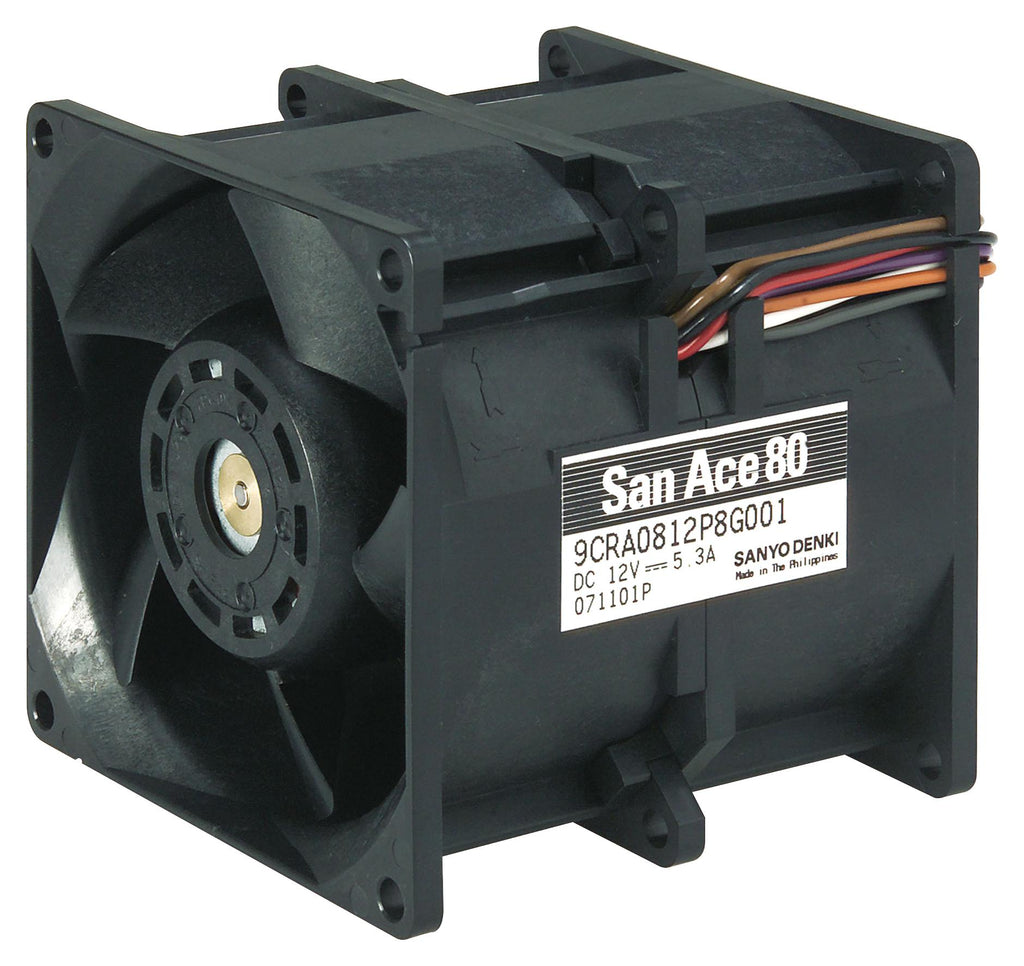

The 9CRA0812P8G001 is a 12VDC 80mm thick Counter Rotating Fan with PWM speed control and pulse sensor, ball bearing and wire leaded power connection. This San Ace 80-series 9CRA-type fan comes with plastic frame and impeller. UL1430, 24AWG +red and -black, yellow sensor, brown control for inlet and +orange, -gray, purple sensor and white control lead wire. Counter-clockwise direction of rotation viewed from front of fan blade and continuously run in a free air state.
- UL94V-0 Flammability rating
- 1900/11300RPM Outlet speed rating
- -20 to 70°C Operating temperature range
- 2.4/63.6W Rated power
- 0.13/4.62"-H2O Static pressure
- Ribbed frame
- Current blocking function (with reverse polarity protection)
- 10MR or more at 500VDC Megger (between lead conductor and frame) insulation resistance
- Burnout protection at locked rotor condition
- 1500VAC for one minute Dielectric strength
Warnings Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.
Other details
| Brand |
SANYO DENKI |
| Part Number |
9CRA0812P8G001 |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
| Manufacturer Catalogue EN |
|
