Description

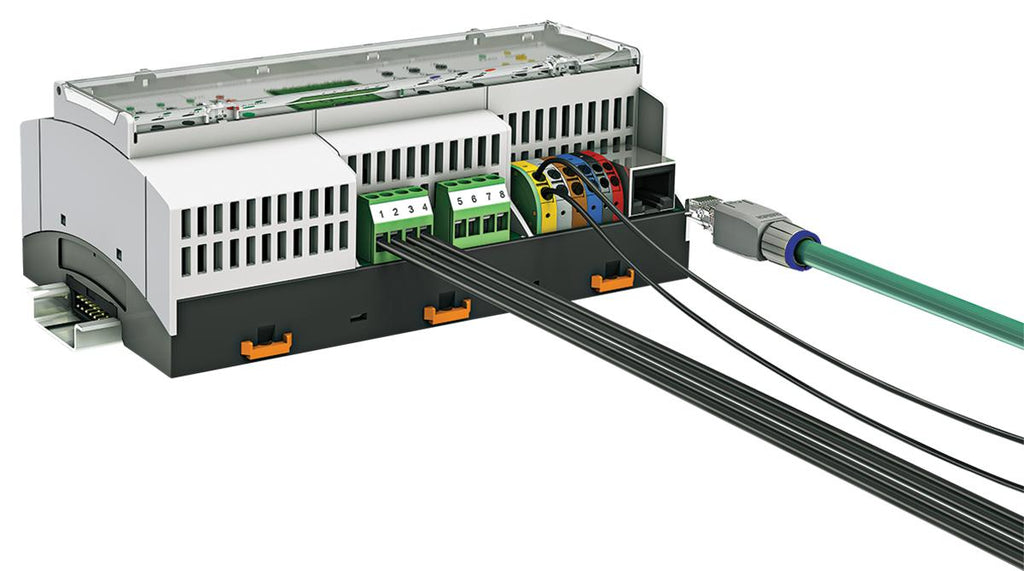

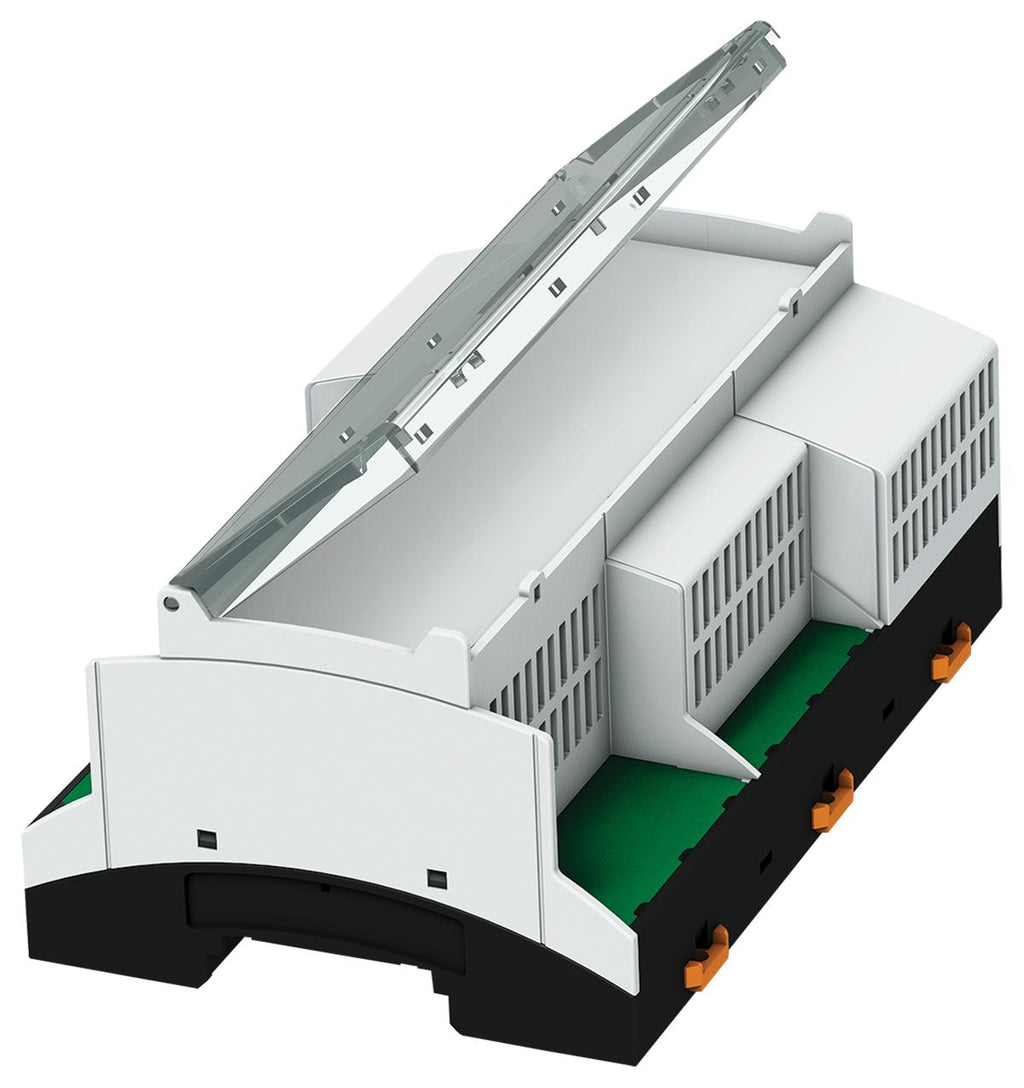

The 2202525 is a light grey non-metallic Enclosure made of polycarbonate. The DEV-KIT BC 107,6 has a connection of individual housing modules with each other by means of the optional HBUS via DIN rail.
- UL94V-0 Flammability rating
- Standard-compliant housing according to DIN 43880 with overall width of 107.6mm
- PCB terminal blocks with 5mm pitch, conductor cross section 1.5mm²
- Optional perfboard for soldering THT components by hand

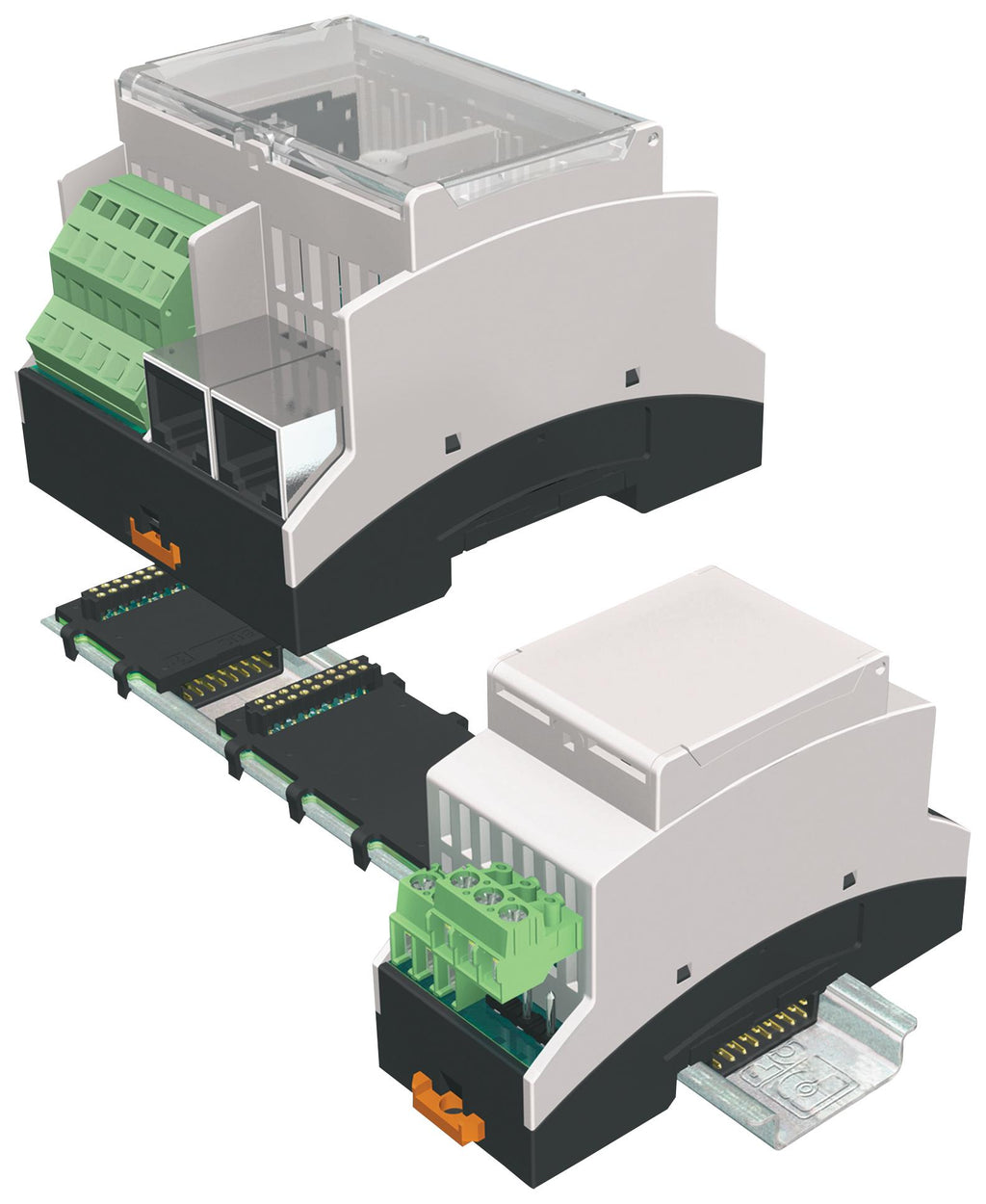

- Module-to-module connection through DIN rail bus connection
- Supplied in component form for self assembly
- Dimensions (LxWxH): 89.7x107.6x62.2mm
Applications
Industrial
Product details
| Enclosure Type: DIN Rail |
| Enclosure Material: Polycarbonate |
| External Height - Metric: 89.7mm |
| External Width - Metric: 107.6mm |
| External Depth - Metric: 62.2mm |
| IP Rating: IP20 |
| Body Colour: Grey |
| NEMA Rating: - |
| External Height - Imperial: 3.53" |
| External Width - Imperial: 4.24" |
| External Depth - Imperial: 2.45" |
| Product Range: BC 107.6 Kit |
Other details
| Brand | PHOENIX CONTACT |
| Part Number | 2202525 |
| Quantity | 1 Kit |
| Technical Data Sheet EN |  |
