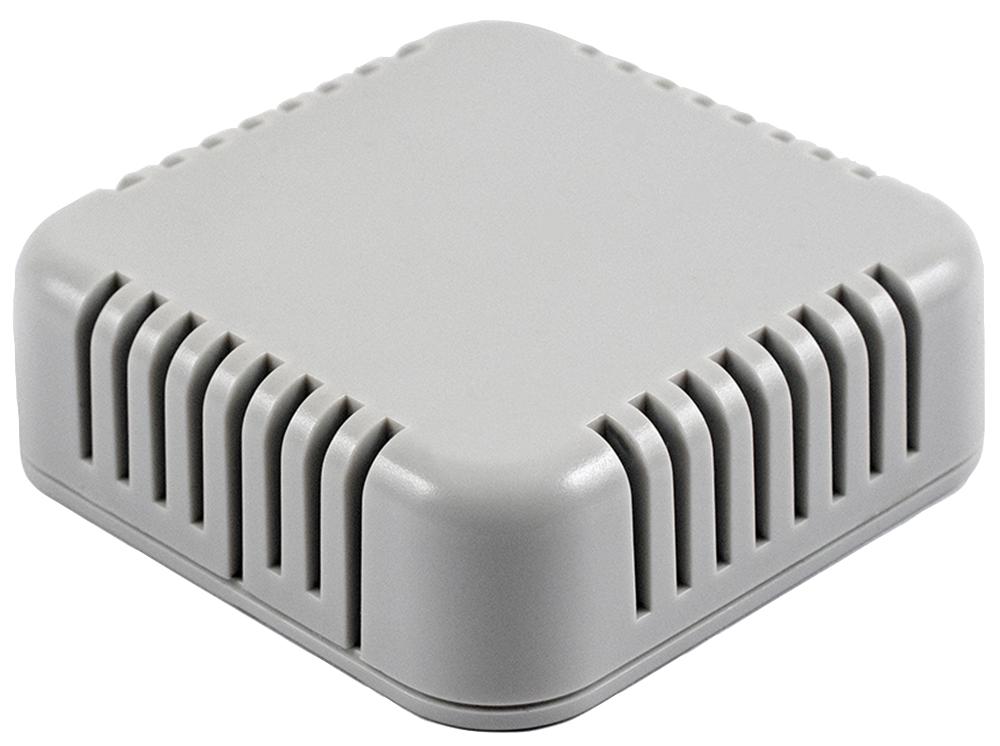

A general purpose ABS miniature vented enclosure that protects electronics from harmful contact with hands or tools, but allows entry of air and moisture for applications which require environmental exposure. Ideally suited for mounting of printed circuit boards.
- Slots on the base of the enclosure allow for easy wall-mounting.
- Knockout on the base can be removed with a screwdriver and used for wire entry.
- Molded in ABS plastic (material has a UL94-HB rating).
- Satin texture finish.
- Enclosure features a snap-fit assembly and can be reopened repeatedly as needed. No hardware required.
- 4 PC board standoffs molded into interior
- To secure PC board use self tapping #2 x 3/16" screws (not included)
- Enclosure base features: Assembly hooks, wall-mounting slots, snap-fit closures, wire entry knockout, PC board standoffs
- Flammability rating: UL94-HB
- IP Rating: IP30
Product details
| Enclosure Type |
Small |
| Enclosure Material |
ABS |
| External Height - Metric |
60mm |
| External Width - Metric |
60mm |
| External Depth - Metric |
20mm |
| IP Rating |
IP30 |
| Body Colour |
Grey |
| NEMA Rating |
- |
| External Height - Imperial |
2.36" |
| External Width - Imperial |
2.36" |
| External Depth - Imperial |
0.79" |
| Product Range |
1551V Series |
Other details
| Brand |
HAMMOND |
| Part Number |
1551V3GY |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
