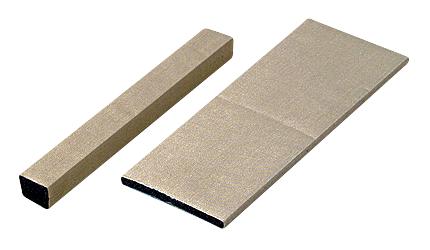

The 3021504 is a square conductive Shielding Gasket with Ni/Cu-layer. This WE-LT shielding gasket features a PU sponge core (elastomer) covered with electro conductive fabric and its square profile offers a larger bearing surface and therefore excellent contact. Also has centred, double-sided adhesive tape (non-conductive) for easy mounting. Depending on the application an IP54 protection class could be reached, that means by the use of the shielding gasket a protection against dust and protection against splashed water could be offered.
- -40 to 85°C Operating temperature range
- Centred, double-sided adhesive tape (non-conductive) for easy mounting
- Available with adhesive tape (conductive)
- 0.08R Surface resistance
Applications
Industrial, Communications & Networking, RF Communications
Product details
| Shielding Type |
EMI Shielding |
| Product Range |
WE-LT Series |
| Gasket Material |
Fabric over Foam |
| Length |
1m |
| Width |
15mm |
| Depth |
4mm |
| Attenuation |
80dB |
Other details
| Brand |
WURTH ELEKTRONIK |
| Part Number |
3021504 |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
