Description

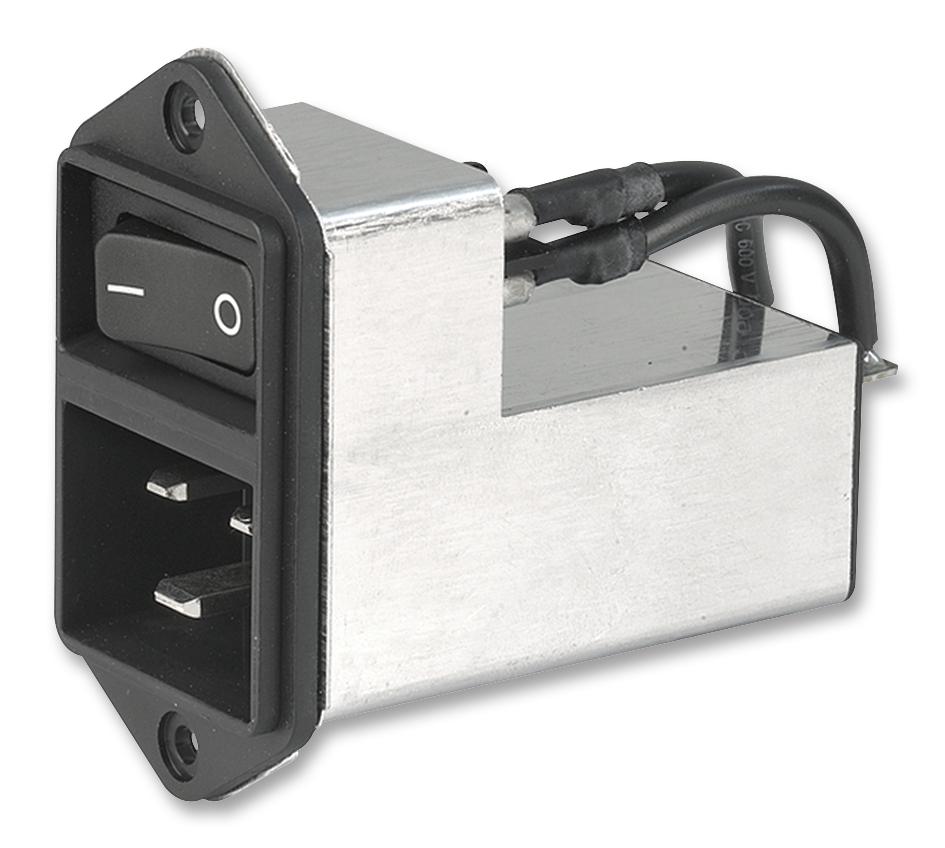

The EC12 series Power Entry Module with line filter. Screw-on mounting from front side panel mount. Appliance inlet protection class I, 2-pole line switch, line filter in standard and medical version functions. Suitable for use in equipment according to IEC/UL 60950.
- 6.3 x 0.8mm Quick-connect terminals
- All single elements are already wired
- Line switch non-illuminated
- With EMC-shield
- Ideal for application with high transient loads
Applications
Power Management, Medical
Warnings
Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.
Product details
| Connector Type: IEC C20 |
| Power Entry Module Applications: Medical |
| Current Rating: 16A |
| Voltage Rating: 250VAC |
| Switch Type: 2-Pole Switch |
| Fuse Holder: - |
| Fuse Size Held: - |
| Connector Terminals: Quick Connect |
| Connector Mounting: Flange Mount |
| IP Rating: IP40 |
| Product Range: EC12 |
Other details
| Brand | SCHURTER |
| Part Number | EC12.2201.001.21 |
| Quantity | Each |
| Technical Data Sheet EN |  |
