Description

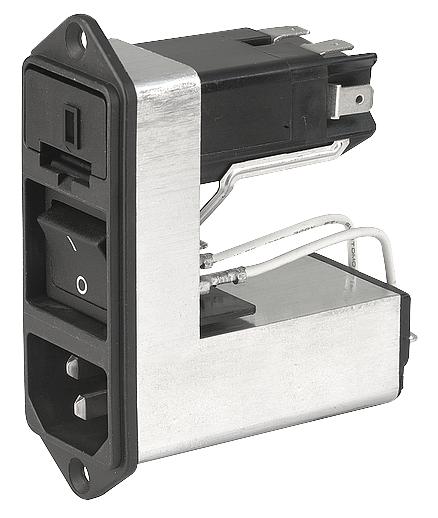

The CD series Power Entry Module with line filter. Screw-on mounting from front side panel mount. Appliance inlet, line switch, fuse holder with interchangeable fuse drawer for Fuse-links 5x20mm or 6.3x32mm, with or without voltage selector (step switch), line filter in standard and medical version functions. Suitable for use in equipment according to IEC/UL 60950.
- 4.8 x 0.8mm Quick-connect terminals
- All single elements are already wired
- Fuse drawer Fingergrip can be removed by hand
- For added safety extra-safe fuse drawers are available
- Fuse drawer meets requirements of medical standard IEC/EN 60601-1
- Fuse drawer can only be opened with the aid of a too
- Fuse holder is accessible from the equipment front
Power Management, Medical
Warnings Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.Other details
| Brand | SCHURTER |
| Part Number | CD24.4101.151 |
| Quantity | Each |
| Technical Data Sheet EN |  |
| Product Change Notice EN | |
| 3D Product Image EN | |
| Application Note EN | |
