Description

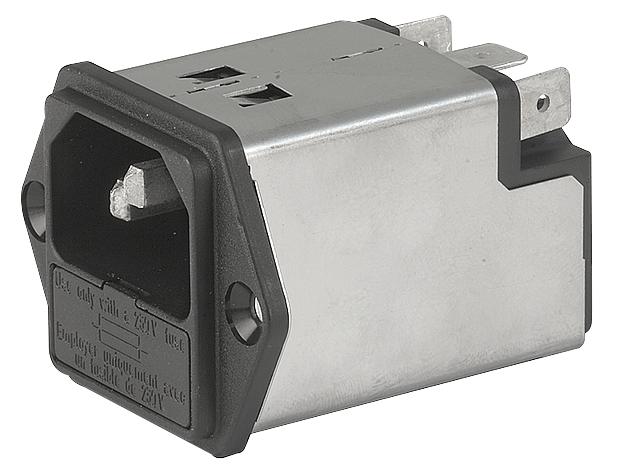

The 5200.1023.1 is an IEC Filter with screw-on panel mounting from front side and 1-pole fuse-holder. It is suitable for use in equipment according to IEC/UL 60950. The fuse drawer meets requirements of medical standard IEC/EN 60601-1.
- IP40 Protection rating
- UL94V-0 Flammability rating
- Suitable for appliances with protection Class-I according to IEC 61140
- Plug removal necessary for fuse-link replacement
- Quick connect terminals
- -25 to 85°C Operating temperature range
Applications
Industrial
Warnings
Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.
Product details
| Connector Type: IEC C14 |
| Power Entry Module Applications: General Purpose |
| Current Rating: 10A |
| Voltage Rating: 250VAC |
| Switch Type: - |
| Fuse Holder: 1-Pole Fuse Holder |
| Fuse Size Held: 5mm x 20mm |
| Connector Terminals: Quick Connect |
| Connector Mounting: Flange Mount |
| IP Rating: IP40 |
| Product Range: 5200 |
Other details
| Brand | SCHURTER |
| Part Number | 5200.1023.1 |
| Quantity | Each |
| Technical Data Sheet EN |  |
