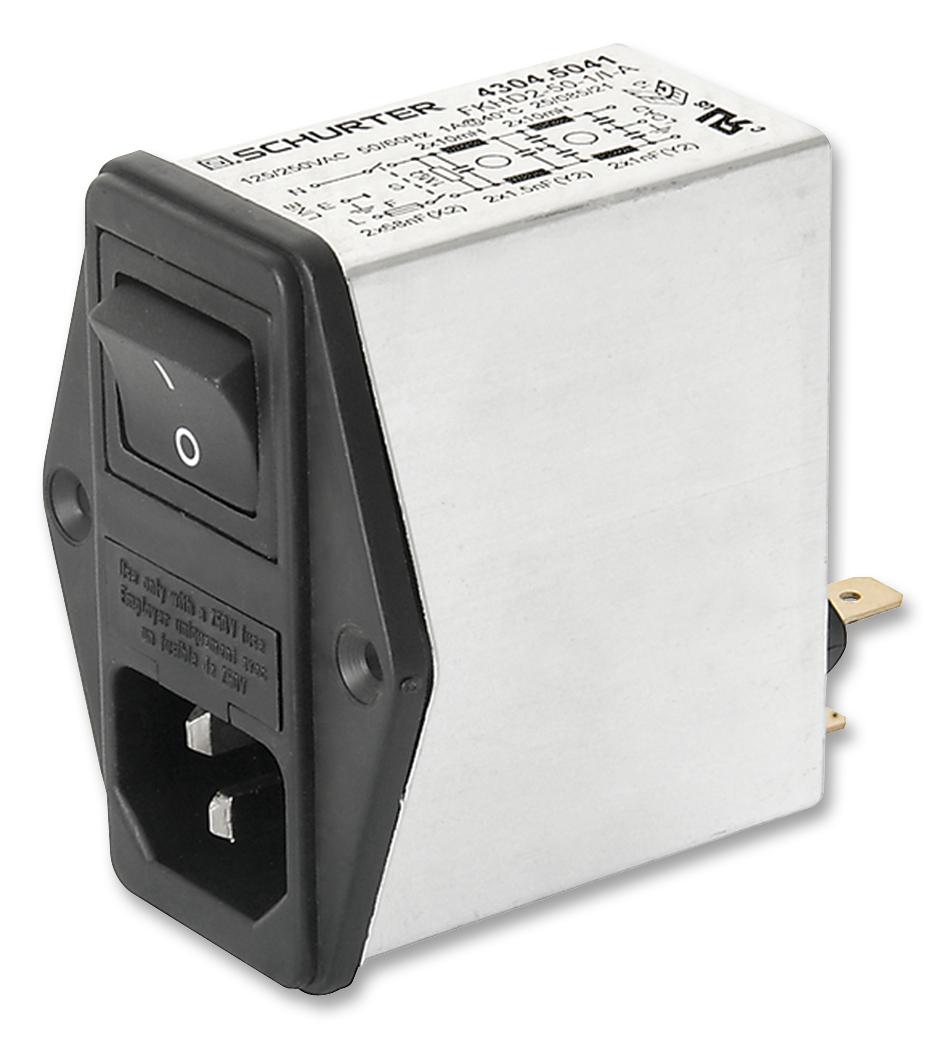

The 4304.5004 is a 6A IEC Filter with nickel-plated steel housing, suitable for use in equipment according to IEC/UL 60950. It has 2-pole line switch and 1-pole fuse-holder for fuse-links.
- IP40 Protection rating
- UL94V-0 Flammability rating
- Quick connect terminals
- Compact design with optimal shielding
- Plug removal necessary for fuse-link replacement
- Screw-on mounting from front side
- 2-stage line filter with increased attenuation With EMC-shield
- -25 to 85°C Operating temperature range
Applications
Industrial
Warnings Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.
Product details
| Connector Type |
IEC C14 |
| Power Entry Module Applications |
General Purpose |
| Current Rating |
6A |
| Voltage Rating |
250VAC |
| Switch Type |
- |
| Fuse Holder |
- |
| Fuse Size Held |
- |
| Connector Terminals |
Quick Connect |
| Connector Mounting |
Flange Mount |
| IP Rating |
IP40 |
| Product Range |
- |
Other details
| Brand |
SCHURTER |
| Part Number |
4304.5004 |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
| Product Change Notice EN |
|
| Application Note EN |
|
