Description

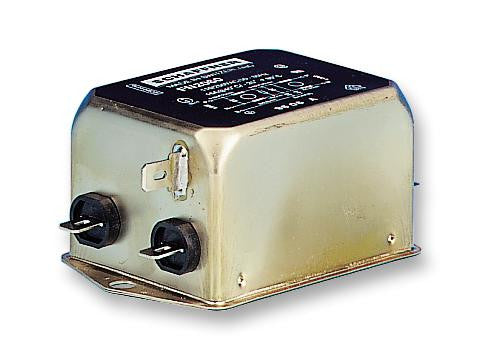

The FN2060-6-06 is a 1-phase 6A multi-stage General Purpose EMI Filter designed for easy and fast chassis mounting. It provides a high conducted attenuation performance, based on chokes with high saturation resistance and excellent thermal behaviour. This filter is designed for noisy applications requiring good differential and common mode attenuation.
- DC to 400Hz Operating frequency
- UL94V-2 Flammability rating
- -25 to 100�C Operating temperature range
Applications
Industrial, Consumer Electronics, Building Automation, Medical, Automation & Process Control
Product details
| Leakage Current Max | 734�A |
| Capacitance | 0.22�F |
| Filter Type | General Purpose |
| Filter Terminals | Quick Connect |
| Inductance Min | 970�H |
| Current Rating | 6A |
| Product Range | FN2000 Series |
| Voltage Rating | 250VAC |
Other details
| Brand | SCHAFFNER |
| Part Number | FN2060-6-06 |
| Quantity | Each |
| Technical Data Sheet EN |  |
| Product Change Notice EN | |
