Description

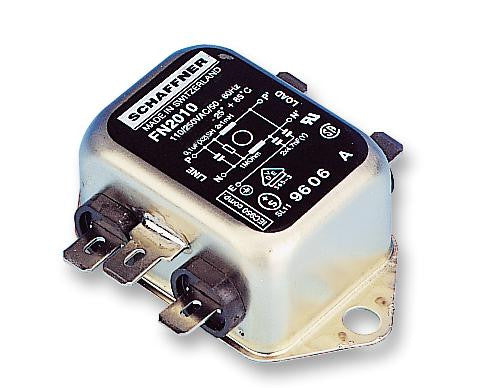

The FN2010-16-06 is a 1-phase 16A General Purpose Filter designed for easy and fast chassis mounting. It provides a general purpose conducted attenuation performance, based on chokes with high saturation resistance and excellent thermal behaviour. This filter can be used to cover a broad range of usage and it offers a good size/amperage ratio.
- DC to 400Hz Operating frequency
- UL94V-2 Flammability rating
- -25 to 100°C Operating temperature range
Applications
Industrial, Consumer Electronics, Medical, Automation & Process Control, Communications & Networking
Product details
| Leakage Current Max | 740µA |
| Capacitance | 0.1µF |
| Filter Type | General Purpose |
| Filter Terminals | Quick Connect |
| Inductance Min | 700µH |
| Current Rating | 16A |
| Product Range | FN2000 Series |
| Voltage Rating | 250VAC |
Other details
| Brand | SCHAFFNER |
| Part Number | FN2010-16-06 |
| Quantity | Each |
| Technical Data Sheet EN |  |
| Product Change Notice EN | |
