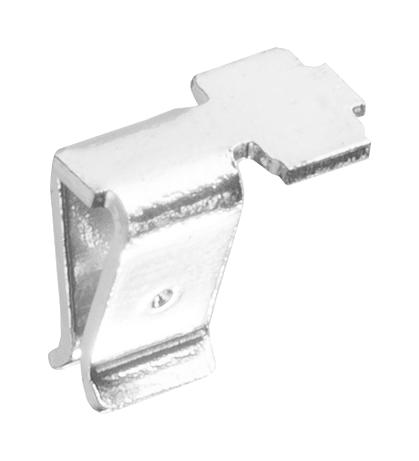

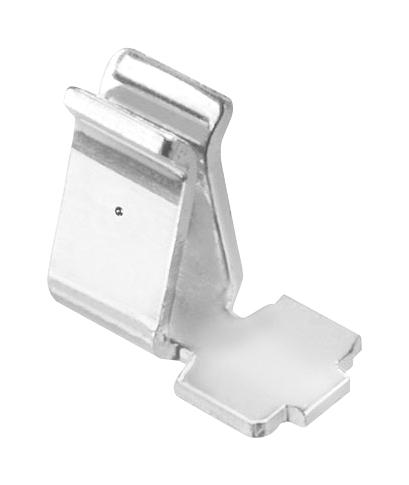

- SMT RFI shield clip for EMI/RFI shields, compact
- Compact size (2.3mm long, 2.0mm high)
- For 0.15-0.20mm shield thickness
- Tin finish on contact area and termination
- Recommended for use with S02-20150300/25200300/30200250, S03-10100300/15100300/30100300 shield cans
- Top entry style
- Operating temperature range from -55°C to +105°C
- Vertical connector orientation
- Beryllium copper base material of contact
- 2.30mm x 1.20mm x 2.00mm overall dimension (L x W x D)
Product details
| Shielding Type |
EMI Shielding |
| Product Range |
- |
| Gasket Material |
Beryllium Copper |
| Length |
2.3mm |
| Width |
1.2mm |
| Depth |
- |
| Attenuation |
- |
Other details
| Brand |
HARWIN |
| Part Number |
S0911-46R |
| Quantity |
Each |
| Drawing EN |
 |
