Description
Product Overview

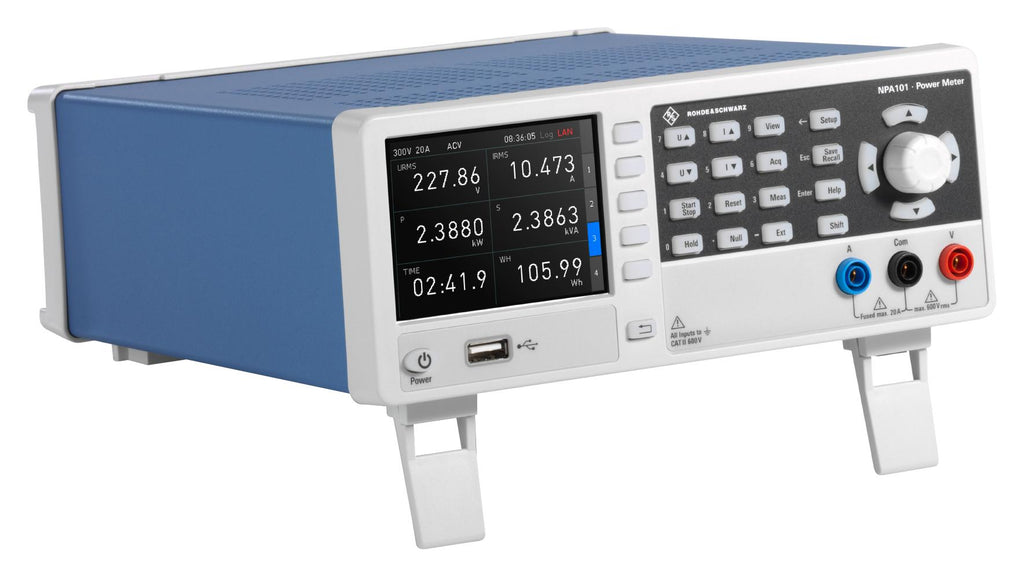

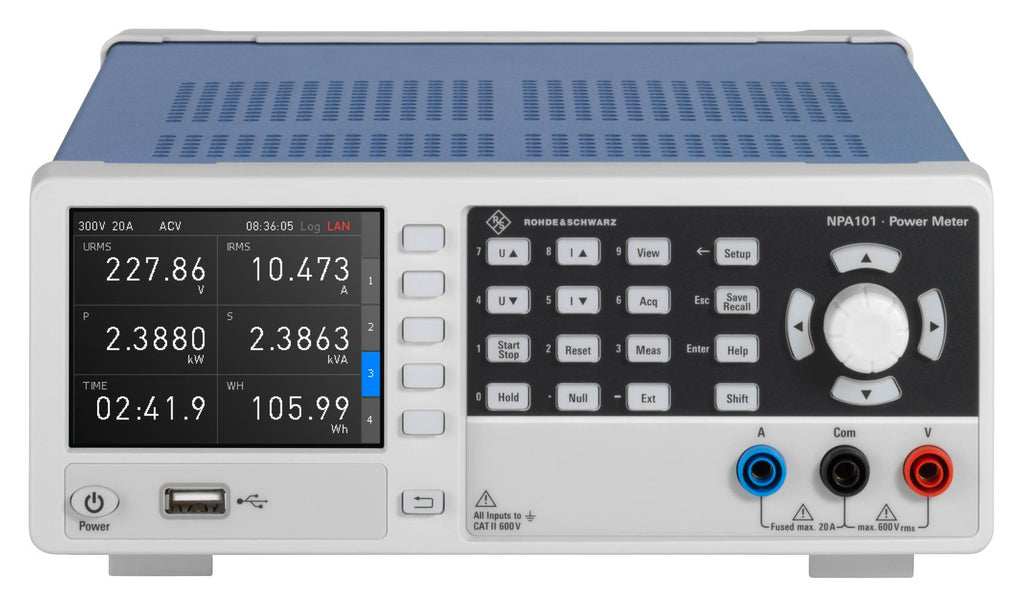

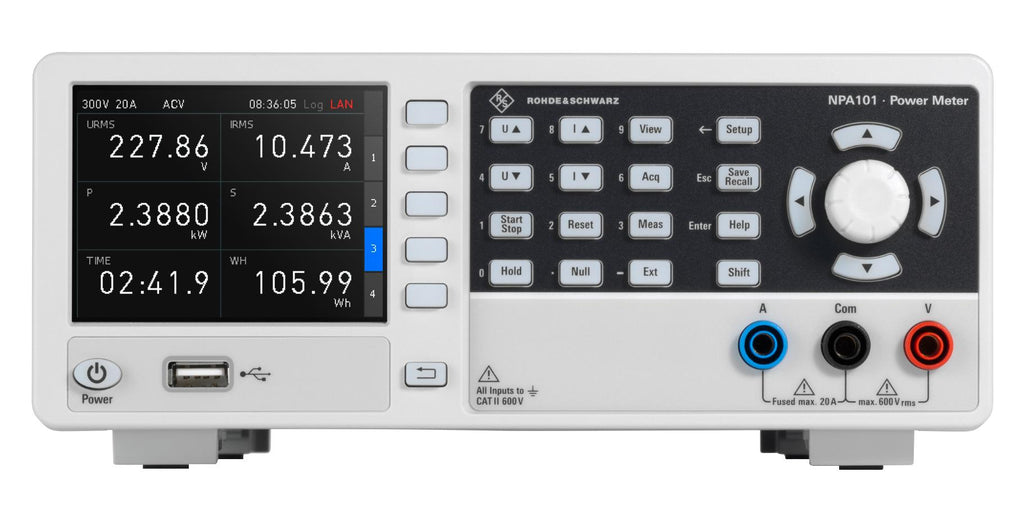

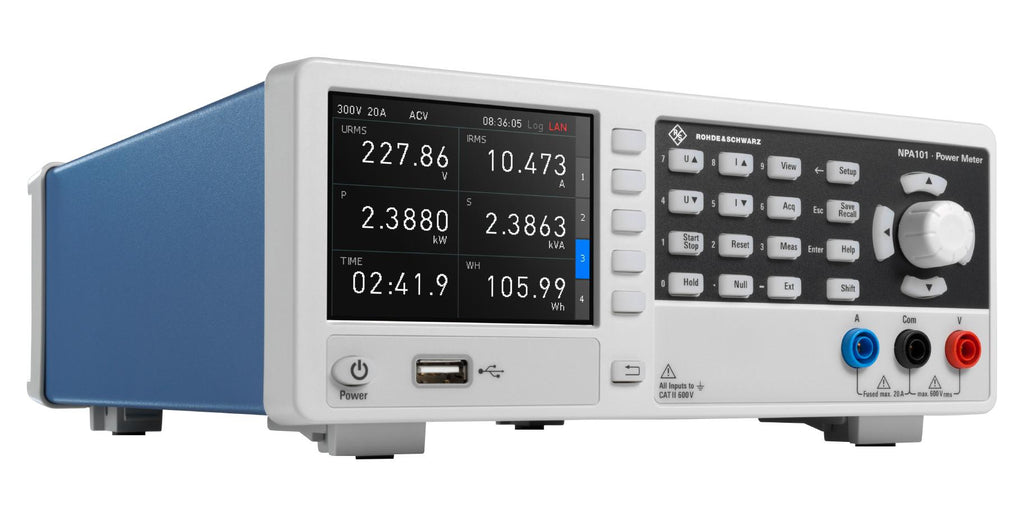

R&S®NPA101 is a compact power meter for AC/DC load and standby current characterization. The R&S®NPA101 comes with a brilliant QVGA colour display (320 × 240 pixel) that can simultaneously display up to 10 user?configurable measurement results with a refresh rate of 10 measurements per second. The instrument has a basic accuracy of 0.05%. Signals are acquired from DC to 100KHz with a sampling rate of 500Ksample/s. Current and voltage are displayed with 16bit resolution. The R&S®NPA101 logging function lets users store measured data with a timestamp in .CSV format for a nearly unlimited period of time. Screen content can be saved to a USB flash drive at the push of a button.
- Power measurement range from 50µW to 12KW
- Operating temperature range +5°C to +40°C
- Dimension is 222mm × 97mm × 291mm (8.74in × 3.82in × 11.46in)
Product details
Other details
| Brand | ROHDE & SCHWARZ |
| Part Number | NPA101 |
| Quantity | Each |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 282891.06 |
| 3-5 | ₹ 280004.42 |
| 5-10 | ₹ 274231.13 |
| 10+ | ₹ 268457.85 |
Bulk discount will be automatically applied during checkout based on quantity.
