FLUKE FLUKE 1550C Insulation Tester, Digital Megohmmeter, 250V, 1kV, 1Tohm, -20 °C, 50 °C, 160 mm

The Fluke 1550C insulation resistance testers offer digital insulation testing up to 10kV, making it ideal for testing a wide range of high voltage equipment including switch gear, motors, generators and cables. Fluke insulation testers can now conduct the entire range of test voltages specified in IEEE 43-2000 with a best in class, 3 year warranty and CAT IV 600 V safety rating. With measurement storage and PC interface, the 1550C are perfect tools for preventative or predictive maintenance programs designed to identify potential equipment failures before they occur.

• Test voltages up to 10 kV provides solutions for all applications
• CAT III 1,000V, CAT IV 600V safety rating
• Warning function alerts the user that line voltage is present and gives voltage reading of up to 600 V AC or DC for increased user safety
• Selectable test voltages in 50V steps from 250 to 1,000V, and 100V steps above 1,000V
• Measurements can be stored in up to 99 memory locations
• Long battery life gives the user over 750 tests between charges
• Automatic calculation of Dielectric Absorption and Polarization Index with no additional setup
• Guard system eliminates the effect of surface leakage current on high-resistance measurements
• Large digital/analogue LCD for easy viewing
• Capacitance and leakage current measurement

Contents

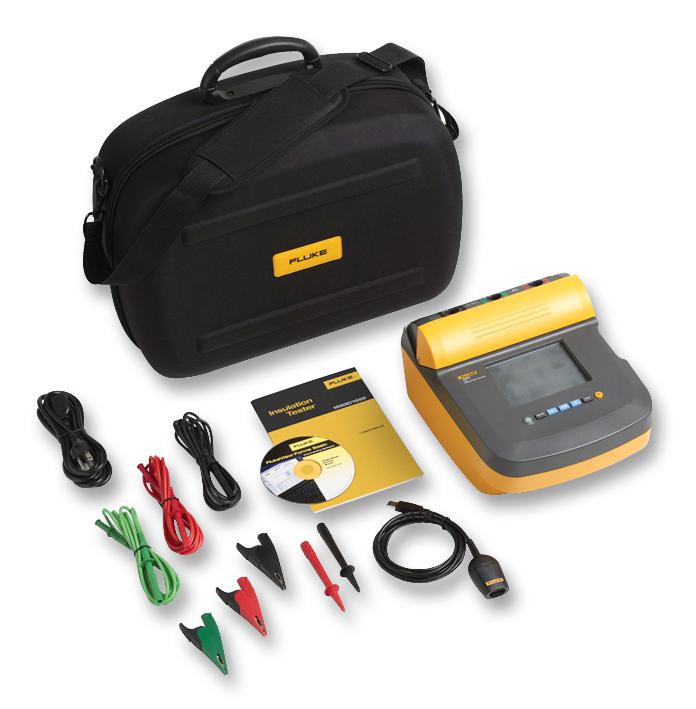

Test cables with crocodile clips, infrared adapter with interface cable, FlukeView forms basic CD-ROM, power lead, soft carry case, English and users manual on CD, quick reference guide, software license agreement, registration card, FlukeView forms and USB-IR cable installation guide.

Notes

Calibration services are available (Europe only). Please visit our calibration services page for more details.
