Description

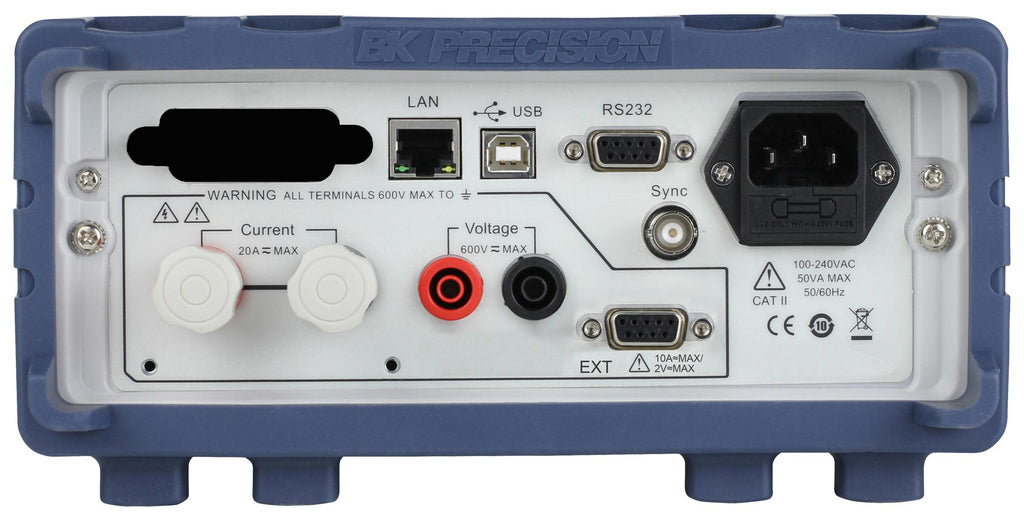

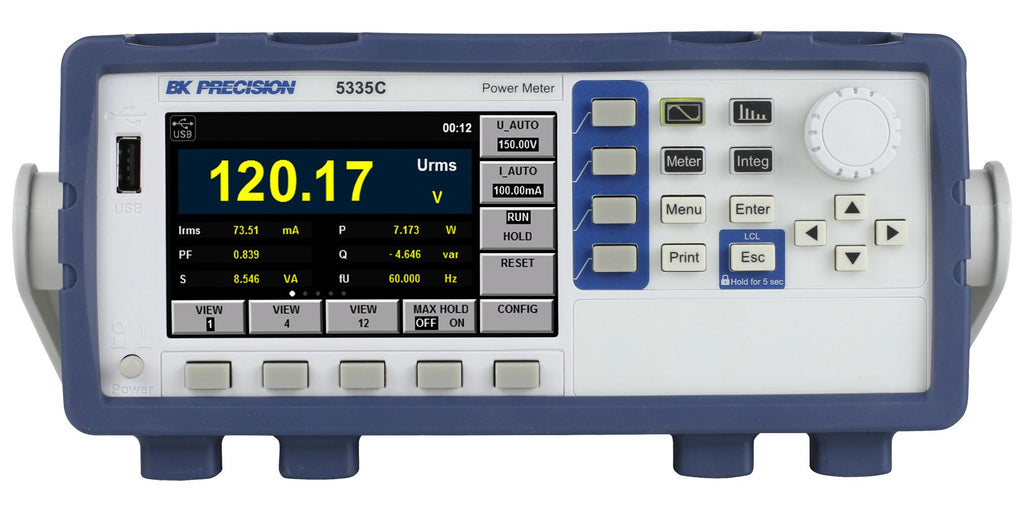

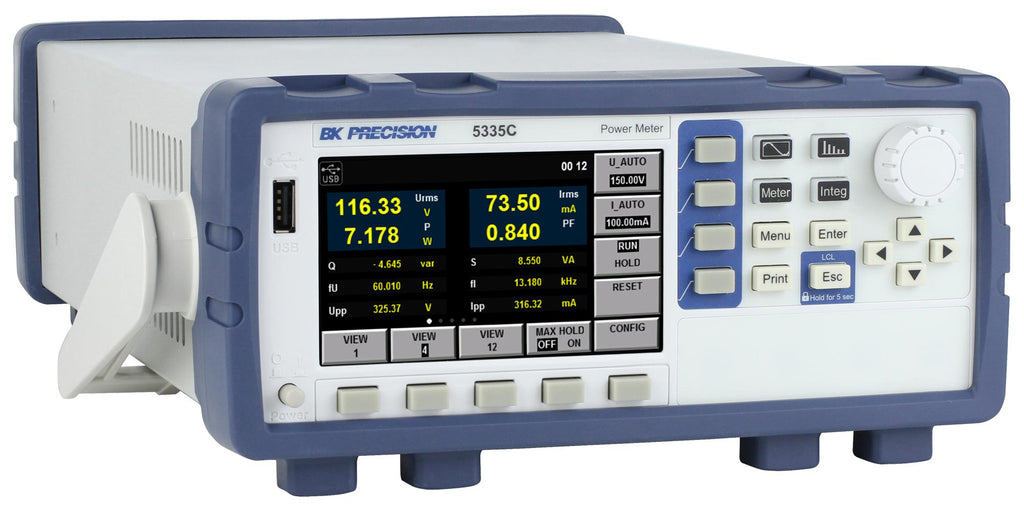

Compact, single-phase AC / DC power meter for measuring and analysing power consumption and power quality parameters quickly and accurately. It supports power measurements up to 600VRMS and 20ARMS with a bandwidth up to of 100KHz. Suitable for use in measure power, electrical energy bought or sold back to the power grid, inverters, harmonics of motors, un-interruptible power supplies, appliances and consumer electronics applications.
- 0.1% basic accuracy for voltage and current measurements
- 4.3inch colour LCD (TFT) display
- Simultaneously measure and display up to 12 measurement parameters
- Capture inrush current and voltage surge with the peak function
- Harmonic measurements to the 50th order
- Integration function with automatic range switching
- Ability to measure electrical energy which is produced or consumed
- Pre-compliance testing according to IEC/EN 62000-3-2 / 4-7
- Standard USB (USBTMC-Compliant), RS232 and LAN interfaces
- Line and frequency filter capability for reducing unwanted signal noise
Contents
Power meter, Getting started manual, Instruction manual (downloadable), AC power cord, USB type A-to-type B cable, Certificate of calibration.
Product details
| Analyser Functions: Current, Crest Factor, Frequency, Phase Angle, Harmonics, Integration, Power, Voltage |
| No. of Channels: - |
| Voltage Range rms: 0V to 600V |
| Bandwidth: 100kHz |
| External Height: 88.2mm |
| External Width: 214.5mm |
| External Depth: 354.6mm |
| Product Range: - |
Other details
| Brand | B&K PRECISION |
| Part Number | BK5335C |
| Quantity | Each |
| Technical Data Sheet EN |  |
