Description
Product Overview

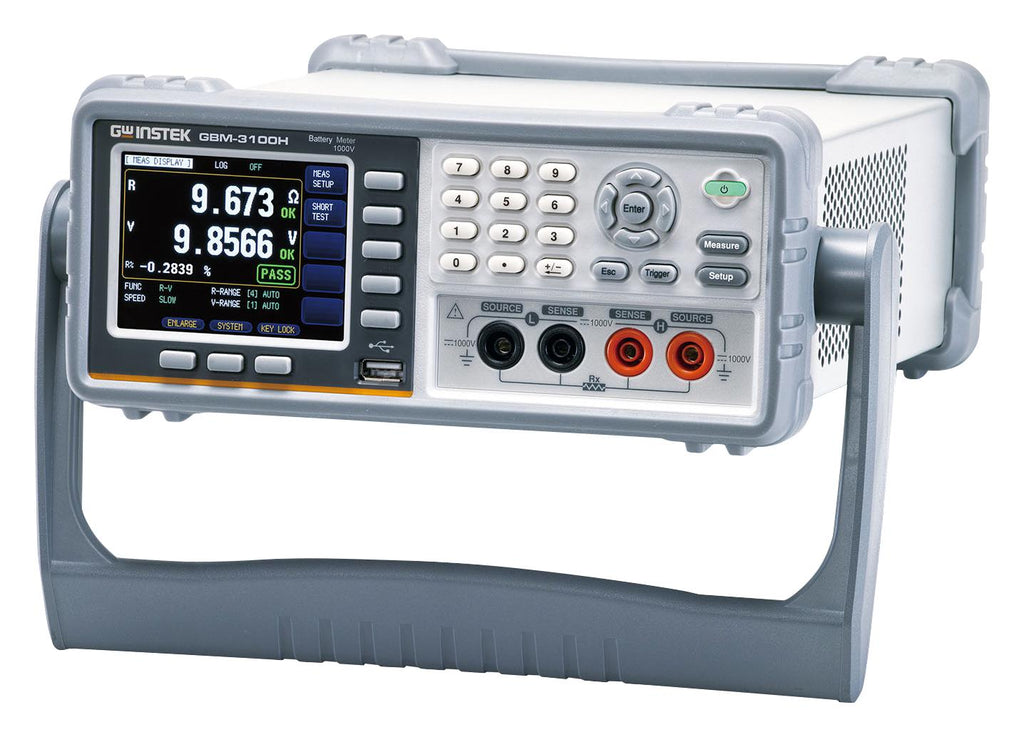

01BM310H00GS is a GBM-3100H 1000V battery meter. The series features 3.5" TFT LCD, 4-wire measurement method, high-resolution (6-digit voltage / 5-digit resistance) measurement display capability, and independent GO/NOGO determination of voltage and resistance, various communications interfaces, etc. to meet various types of battery measurements, ranging from single cell, battery cell, to the end product (battery), etc. so as to facilitate users in achieving accurate measurements at all stages of production.
- Measurement items: DC voltage and AC resistance
- Voltage measurement: 1000V (GBM-3100H)
- Resistance measurement: 0mohm~ 3.2kohm(max.)
- Basic accuracy for voltage measurement: 0.01%
- Basic accuracy for resistance measurement: 0.5%
- Measurement resolution up to 0.1?? and 10?V, suitable for single-cell measurement
- Judgment mechanism of test lead disconnect/contact failure is to ensure measurement reliability
- Standard interfaces: USB host/device, RS-232C and handler
- AC power source 100-240, 50-60Hz
- Dimension is 264(W) x 107(H) x 309(D) mm
Contents
Battery meter, Safety sheet x 1, Power cord x 1, GBM-01 x 1 : 4 wire (kelvin clip) test lead, 90V (max.) approximately 1100mm.
Product details
Other details
| Brand | GW INSTEK |
| Part Number | 01BM310H00GS |
| Quantity | Each |
| Technical Data Sheet EN |  |
