Description
Product Overview

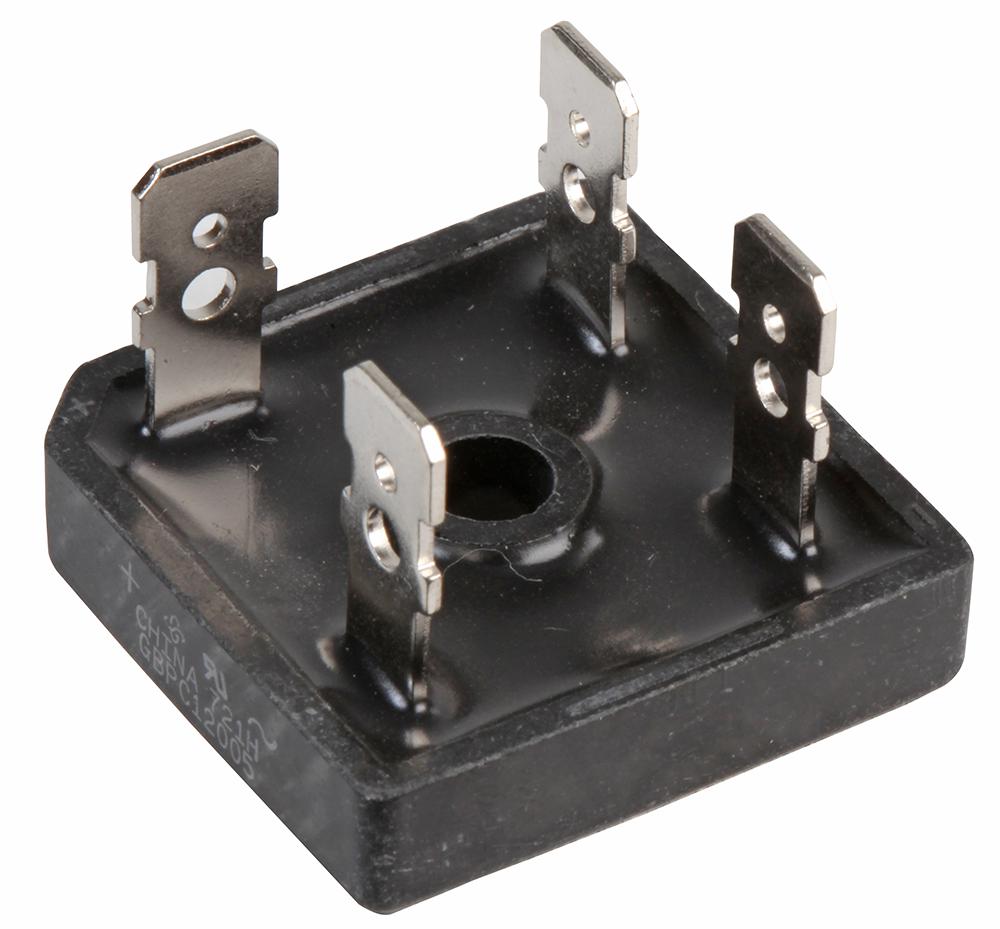

The VS-GBPC3512A is a single-phase extremely compact encapsulated Bridge Rectifier offering efficient and reliable operation. The bridge rectifier features positive polarity symbol moulded on the plastic case, glass passivated diode chips and excellent power/volume ratio.
- Centre hole fixing
- 1300V Maximum non-repetitive peak AC reverse voltage
- 2mA Maximum repetitive peak reverse current
- 0.77V Low level of threshold voltage
- 0.92V High level of threshold voltage
- 5?A at 25°C Maximum DC reverse current
- 2700V at 50Hz RMS isolation voltage base plate
Applications
Mains Rectification
Product details
Other details
| Brand | VISHAY |
| Part Number | VS-GBPC3512A |
| Quantity | Each |
| Technical Data Sheet EN |  |
