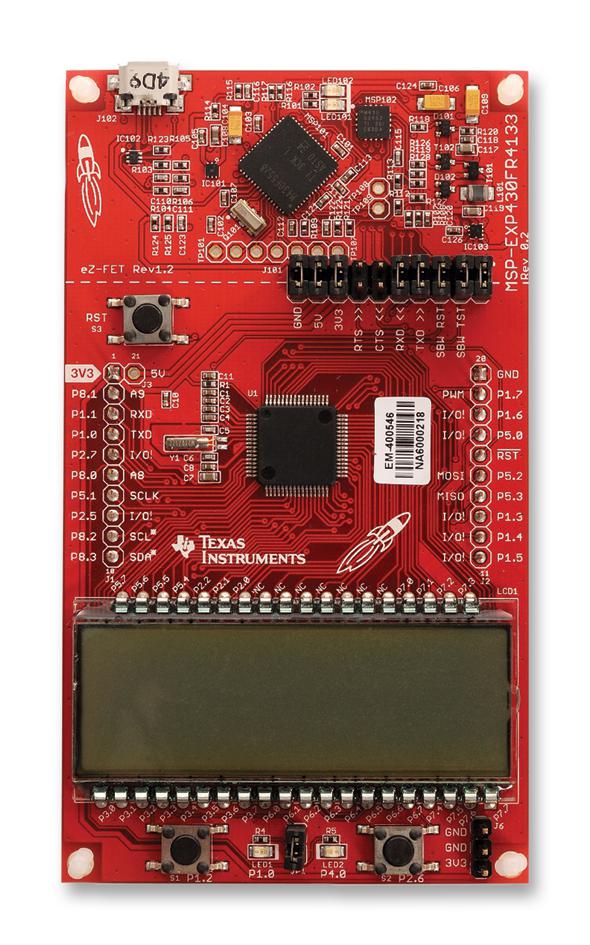

Texas Instruments MSP-EXP430FR4133 Development Board Launchpad MSP430FR4133 Fram MCU On-Board Debugger & Segmented LCD

The MSP-EXP430FR4133 LaunchPad development kit is an easy to use evaluation kit for the MSP430FR4133 microcontroller. The MSP430FR4133 is a 16bit microcontroller with 16KB FRAM, 16bit RISC architecture, 8MHz FRAM access and 16MHz system clock speed. The kit contains everything needed to start developing on the MSP430 ultra low power (ULP) FRAM based microcontroller platform, including onboard emulation for programming, debugging and energy measurements. The board features onboard buttons and LEDs for quick integration of a simple user interface as well as a liquid crystal display (LCD) display which showcases the integrated driver with flexible software configurable pins. Free software development tools are also available, including TI's Eclipse based Code Composer Studio (CCSTUDIO) and IAR Embedded Workbench IAR-KICKSTART. Both of these integrated development environments (IDEs) support EnergyTrace technology when paired with the MSP430FR4133 LaunchPad.

• EnergyTrace technology available for ultra low power debugging
• 20 pin BoosterPack plug-in module headers
• Onboard eZ-FET emulation
• Backchannel UART through USB to PC

Applications

Embedded Design & Development, Wireless, Communications & Networking, Imaging, Video & Vision, Sensing & Instrumentation

Contents

MSP-EXP430FR4133 LaunchPad development kit, Micro USB cable, Quick start guide.

Footnotes The MSP-EXP430FR4133 LaunchPad supports EnergyTrace technology but does not have support for EnergyTrace++ technology.

Other details

Brand	TEXAS INSTRUMENTS
Part Number	MSP-EXP430FR4133
Quantity	Each
