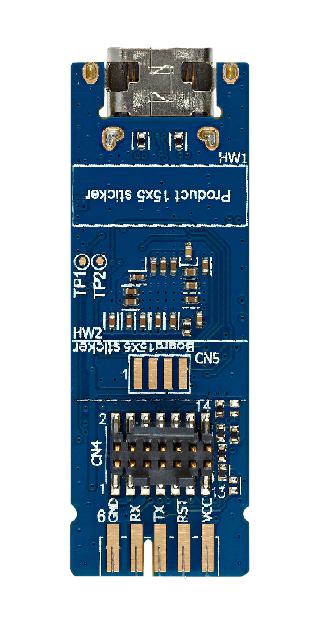

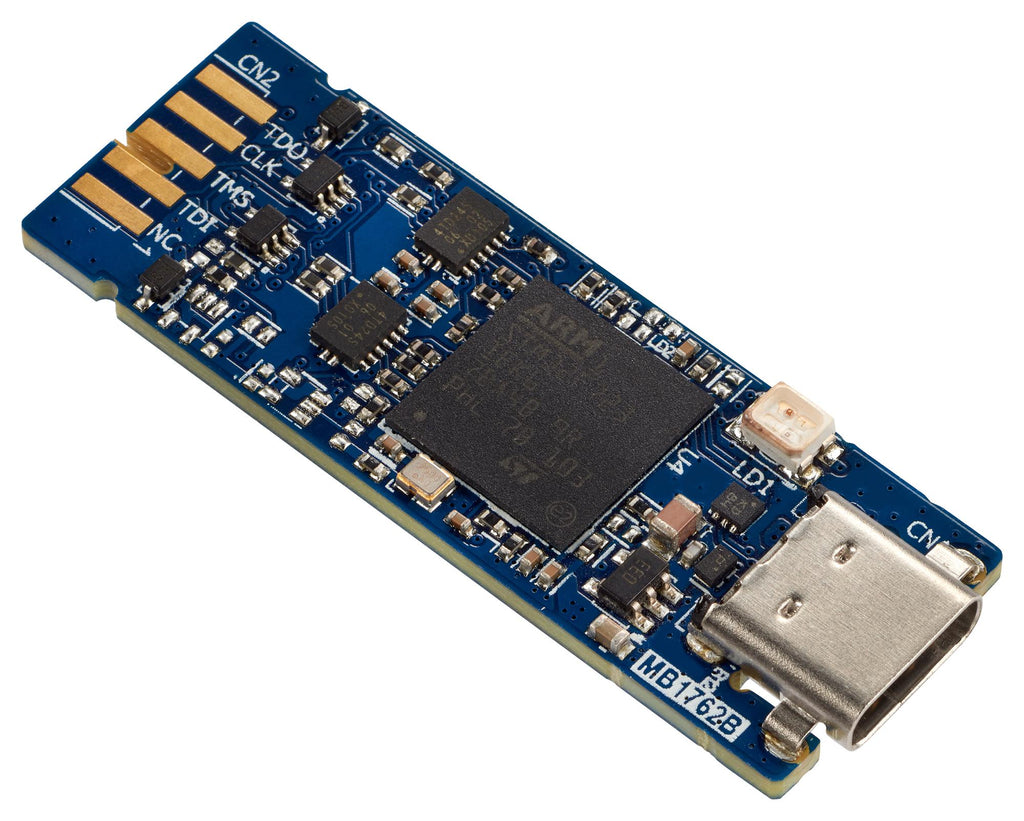

STLINK-V3MINIE is a stand-alone debugging and programming mini probe for STM32 microcontrollers. The JTAG/SWD interfaces are used to communicate with any STM32 microcontroller located on an application board. The STLINK-V3MINI also provides a Virtual COM port interface allowing the host PC to communicate with the target microcontroller through one UART. The STLINK-V3MINI is a portable version, easy-to-use debugger//programmer including STDC14 interface with its flat cable.
- Stand-alone probe
- Approximately 15 x 30mm high-density integration PCB

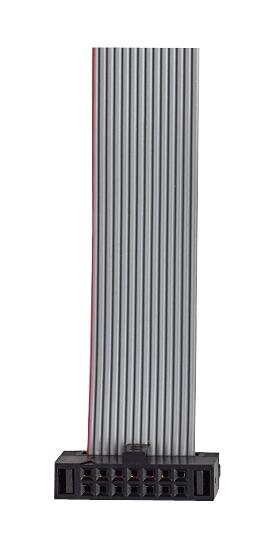

- Delivered with 1.27mm pitch STDC14 debug connector and STDC14 to STDC14 flat cable
- Self-powered through a USB connector (Micro-B)
- USB 2.0 high-speed compatible interface
- Direct firmware update support (DFU)
- JTAG / serial wire debugging (SWD), virtual COM port (VCP)
- Drag-and-drop flash programming
- Two colour LEDs: communication, power
- Includes STDC14 signals protection
Product details
| IC Product Type:
Debugger / Programmer Mini Probe
|
| Silicon Family Name:
STM32
|
| Core Architecture:
ARM
|
| Core Sub-Architecture:
Cortex-M
|
| Kit Contents:
Debugger / Programmer Board, STDC14 Debug Connector w/ STDC14 to STDC14 Flat Cable
|
| Features:
Direct Firmware Update Support, Drag & Drop Flash Programming, Self Powered Through a USB Connector
|
| Product Range:
-
|
Other details
| Brand |
STMICROELECTRONICS |
| Part Number |
STLINK-V3MINIE |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
