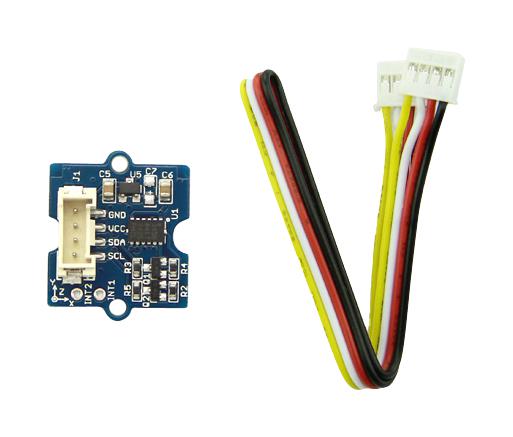

Grove - ADXL345 is a small, thin, ultra low power 3-axis accelerometer, providing high resolution (13-bit) measurement at up to ±16 g. The ADXL345 is well suited for mobile device applications. It measures the static acceleration of gravity in tilt-sensing applications, as well as dynamic acceleration resulting from motion or shock. Its high resolution (3.9 mg/LSB) enables measurement of inclination changes less than 1.0°. Grove - ADXL345 is with the extreme low power consumption, as low as 23 µA in measurement mode and 0.1 µA in standby mode. The Low power modes enable intelligent motion-based power management with threshold sensing and active acceleration measurement at extremely low power dissipation. There is an on-board a 4-pin Grove interface (3-5VDC) for easily connect with Arduino boards and Seeeduino boards.
- Wide power range DC3V to 5V
- Plug and play with Arduino boards by grove connector
- High sensitivity
- Small, low-profile package: 14-terminal LGA
- Dimension is 130mm x 90mm x 10mm
Other details
| Brand |
SEEED STUDIO |
| Part Number |
101020054 |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
