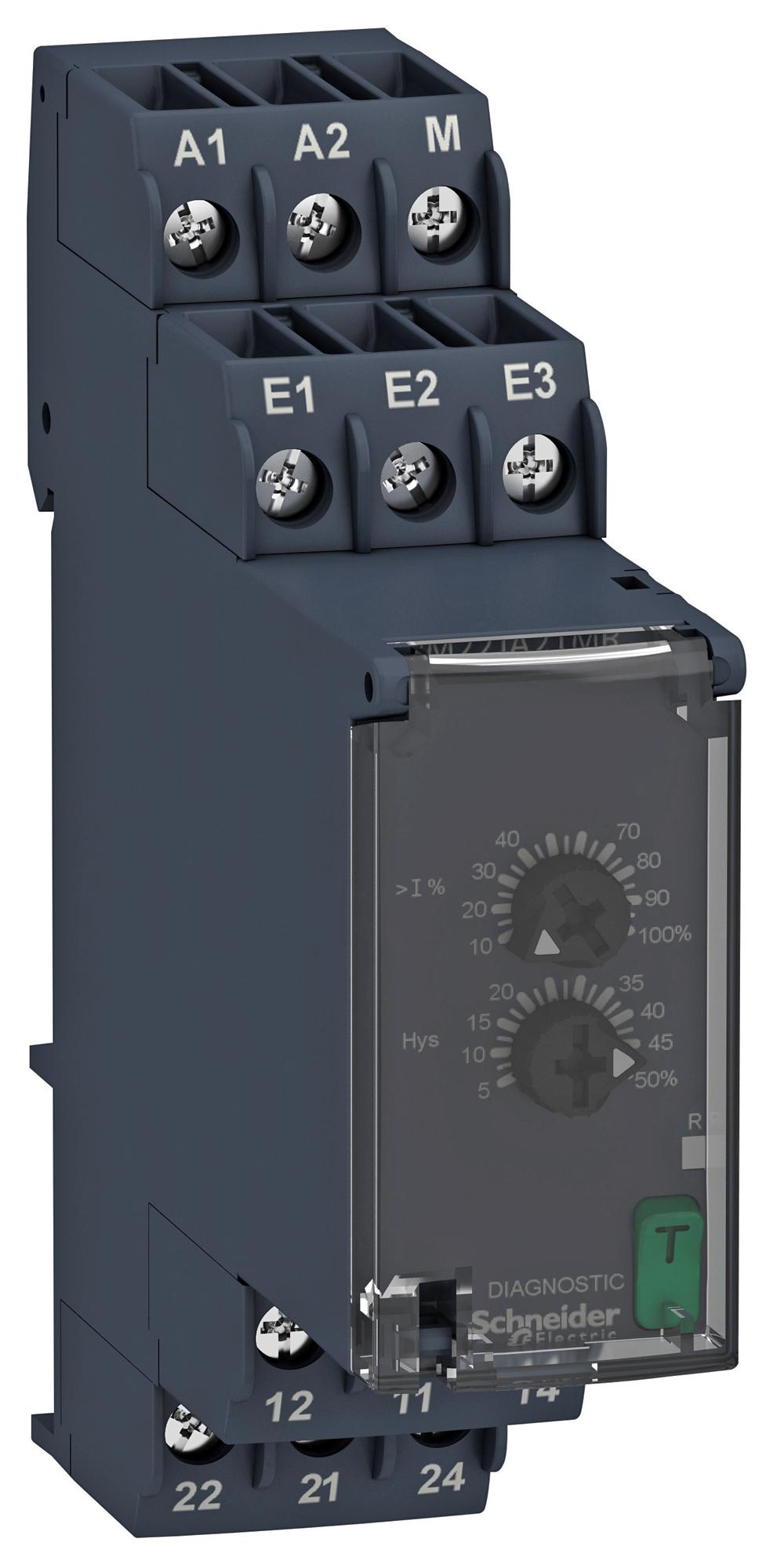

Zelio Control RM22JA control relay allows monitoring of overcurrent control. It has 2 changeover contacts double pole double throw a measurement range of 4mA-1A. This modular control relay is ideal for monitoring of electrical values and current variation in industrial and building control panels. It applies to a wide type of industrial automation applications such as hoisting, packaging, lifts, textile, water. It has slim form-factors with 22.5mm width, allowing for a flexible and easy installation on DIN rail, using the same space as any modular 2-pole DIN device.
- Simple and precise settings with screw trimmers
- Automatic detection of abnormal electrical values before they incur serious damage to machinery
- Provides automatic shutdown management and fault information to user
- Transparent cover
- Multi-function controller for wide choice selected in hard-wired logic automated systems
- Integral LED for indicating control status
Product details
| Product Range:
Zelio RM22JA
|
| Contact Configuration:
DPDT
|
| Contact Current:
8A
|
| Relay Mounting:
DIN Rail
|
| Contact Voltage VAC:
250V
|
| Relay Terminals:
Screw
|
| Contact Voltage VDC:
5V
|
| Supply Voltage Max:
240VAC
|
| Current Monitoring Range Min:
4mA
|
| Current Monitoring Range Max:
1A
|
| Power Consumption:
1.5W
|
Other details
| Brand |
SCHNEIDER ELECTRIC |
| Part Number |
RM22JA21MR |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
