Description

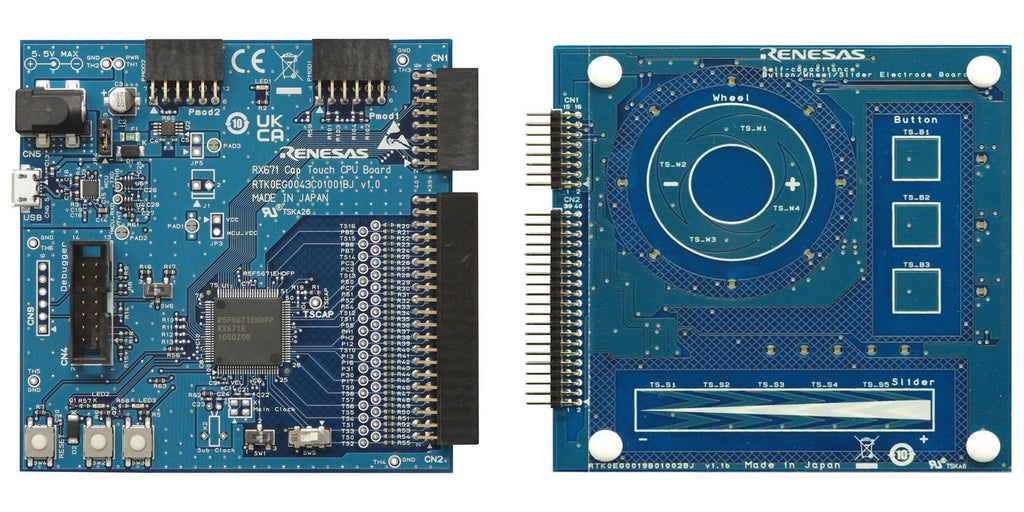

RTK0EG0044S01001BJ is a capacitive touch evaluation system for RX671. The RX671 capacitive touch evaluation system makes it easy for users to evaluate touch solutions offered by Renesas. You can start evaluating immediately out of the box using the board and software included in each kit.
- Use to evaluate various touch functions (button, slider, wheel)
- Simple prototyping
- Use as a reference when designing boards or software
- Easily adjust the sensitivity by using QE for capacitive touch
- Equipped with RX671 MCU (R5F5671EHDFP)
- Capacitive touch sensor pin 17 channels available
Contents
RX671 CPU board, Touch application board.
Product details
| Silicon Manufacturer: Renesas |
| No. of Bits: 32bit |
| Silicon Family Name: RX |
| Core Architecture: - |
| Core Sub-Architecture: - |
| Silicon Core Number: R5F5671EHDFP |
| Kit Contents: CPU Board R5F5671EHDFP, Touch Application Board |
| Product Range: RX Family, RX600 Series, RX671 Group Microcontrollers |
Other details
| Brand | RENESAS |
| Part Number | RTK0EG0044S01001BJ |
| Quantity | Each |
| Technical Data Sheet EN |  |
