Description
Product Overview

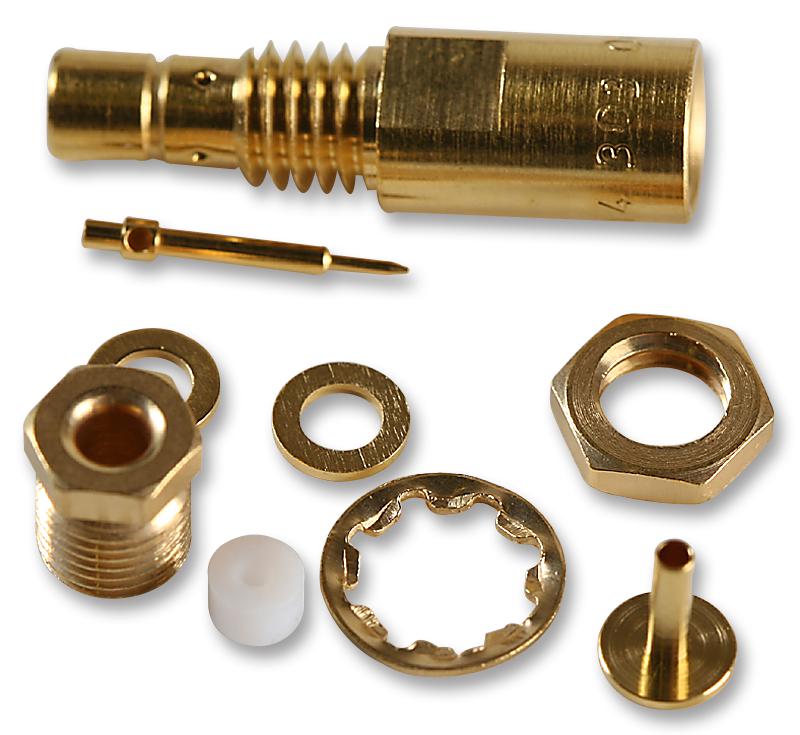

The R114303000 is a bulkhead clamp SMB Straight Jack for use with KX21, RG178, RG178 LC and RG196 RF coaxial cables. It has gold over nickel plated brass body with centre contact and a PTFE insulator.
- 1000M? Minimum insulation resistance
- 750Veff Minimum dielectric withstanding voltage
- 250Veff Maximum voltage rating
- 500-cycle Minimum mating life
- -55 to 100°C Operating temperature range
Applications
RF Communications, Industrial
Product details
Other details
| Brand | RADIALL |
| Part Number | R114303000 |
| Quantity | Each |
| Technical Data Sheet EN |  |
