Description

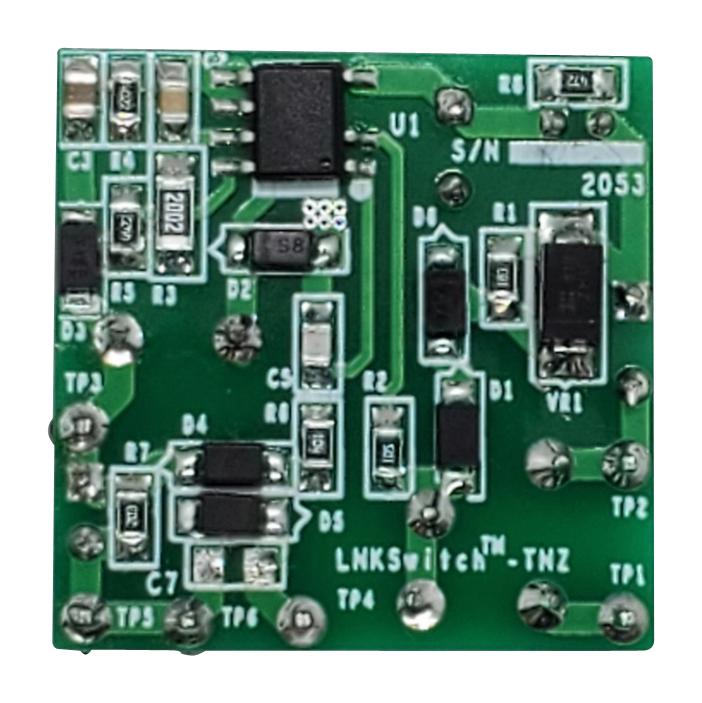

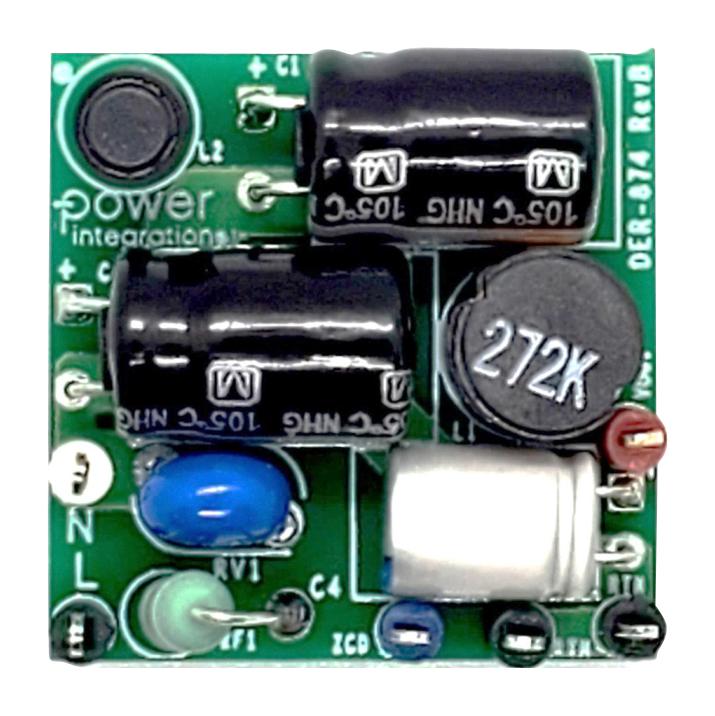

RDK-874 is a reference design report for a 0.48W non-isolated power supply with lossless generation of AC zero-crossing signal using LinkSwitch-TNZ LNK3302D.
- Wide-range AC input from 90VAC to 305VAC
- 6V, 80mA output
- Low-component count with integrated 725 V power MOSFET, current sensing and protection
- <200µA standby input current across AC line
- Zero-crossing signal output synchronized to AC line
- Meets EN550022 and CISPR-22 Class B conducted EMI
- Compact solution 25.4mm x 25.4mm, 10mm maximum height
- <20mW no-load input power
- Load short-circuit protection
Other details
| Brand | POWER INTEGRATIONS |
| Part Number | RDK-874 |
| Quantity | Each |
| Technical Data Sheet EN |  |
