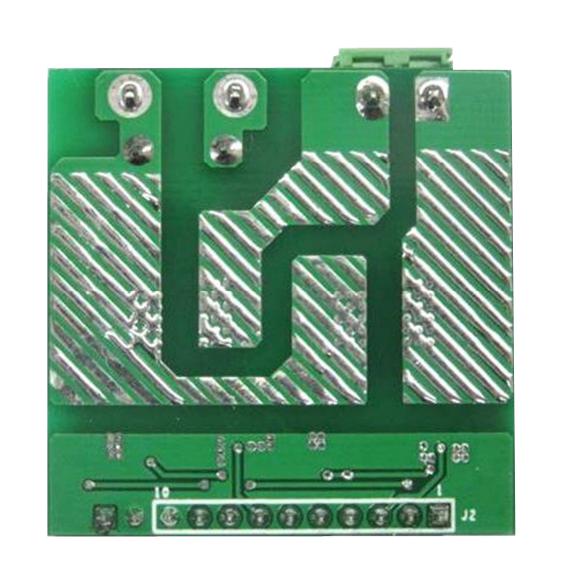

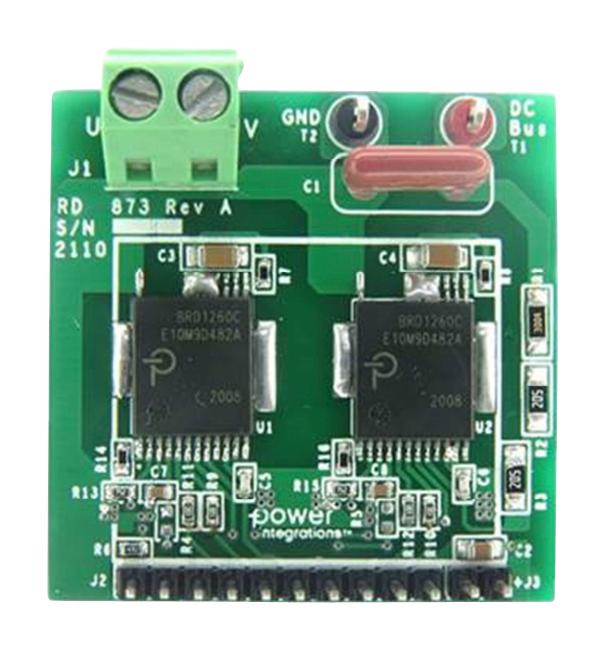

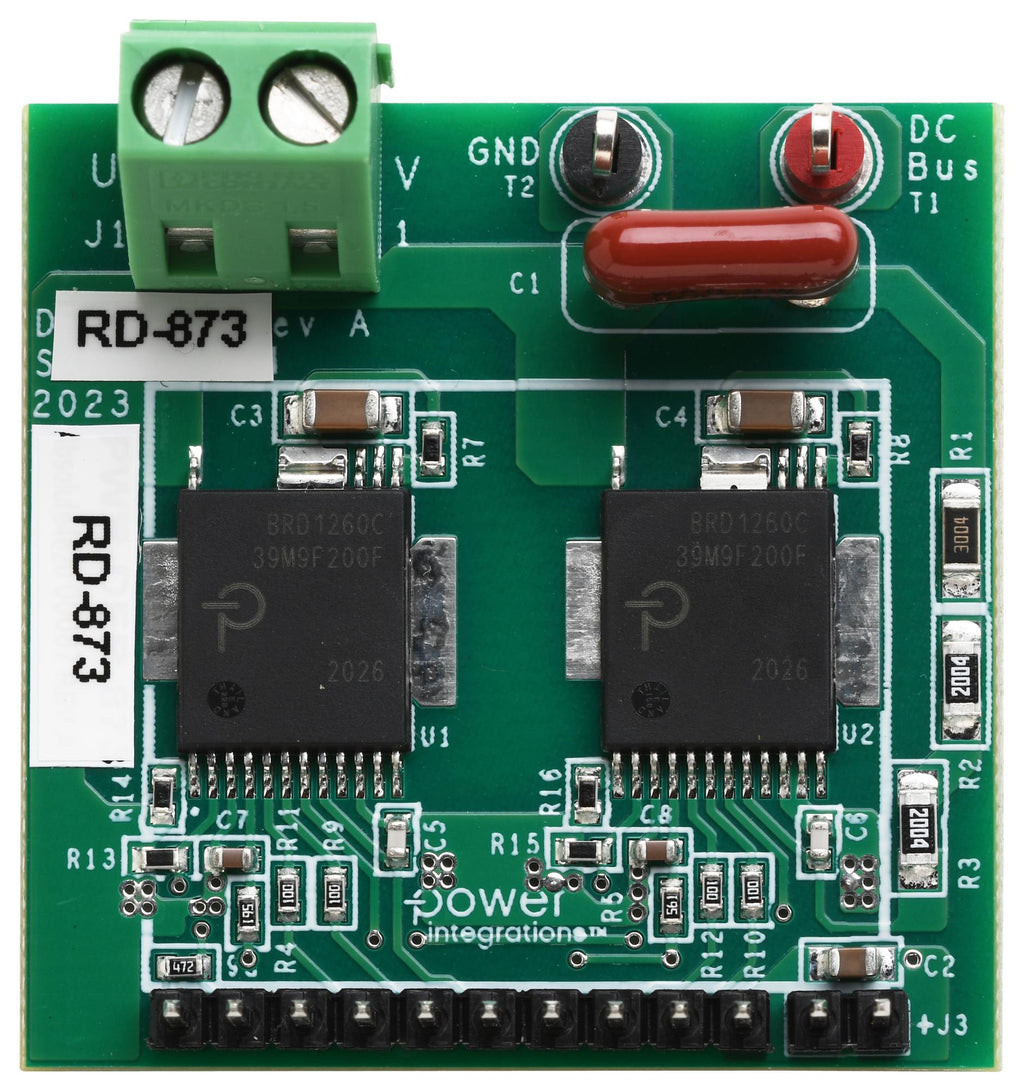

RDK-873 reference design kit is a 0.22ARMS, 30W, up to 95% efficient compact single-phase inverter design for a high-voltage single-phase brushless DC (BLDC) motor using BridgeSwitch motor driver IC. The inverter stage is implemented using two fully integrated BridgeSwitch (BRD1260C) devices in a full-bridge inverter configuration. The BridgeSwitch driver IC comes in a small footprint surface mount InSOP-24C package with exposed pads that enable heat sinking through PCB allowing a small form factor solution with few components. The board incorporates a simple control interface to the external controller facilitating the inverter control inputs and the BridgeSwitch additional features including a system sensing input, instantaneous phase current output and a single wire status update communication bus. In addition, an optional input for low-side device external-bias operation is provided for low no load input power requirement.
- 270VDC to 365VDC input, 30W continuous inverter output power, 0.22A continuous motor RMS current
- Single-phase inverter design for high-voltage BLDC applications using BRD1260C
- Highly compact design with an inverter size of 25 x 30mm
- Fully self-biased operation, no auxiliary power supply needed on the BridgeSwitch devices
- Supports low side external bias operation for low no-load input power requirement
- Integrated high side and low side cycle-by-cycle current limit on each BridgeSwitch devices
- Device overtemperature protection
- High voltage bus monitor with four undervoltage threshold and one overvoltage threshold
- Instantaneous phase current output signal on each BridgeSwitch devices
- Single wire status update communication bus, external system sensing input
Warnings Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.
Other details
| Brand |
POWER INTEGRATIONS |
| Part Number |
RDK-873 |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
