| ₹ 2080.15 includes GST and import duties. | |
| B2B customers can avail ₹ 317.22 ITC on this product | |
| 100% Secure Payments | 100% Genuine product |
Description

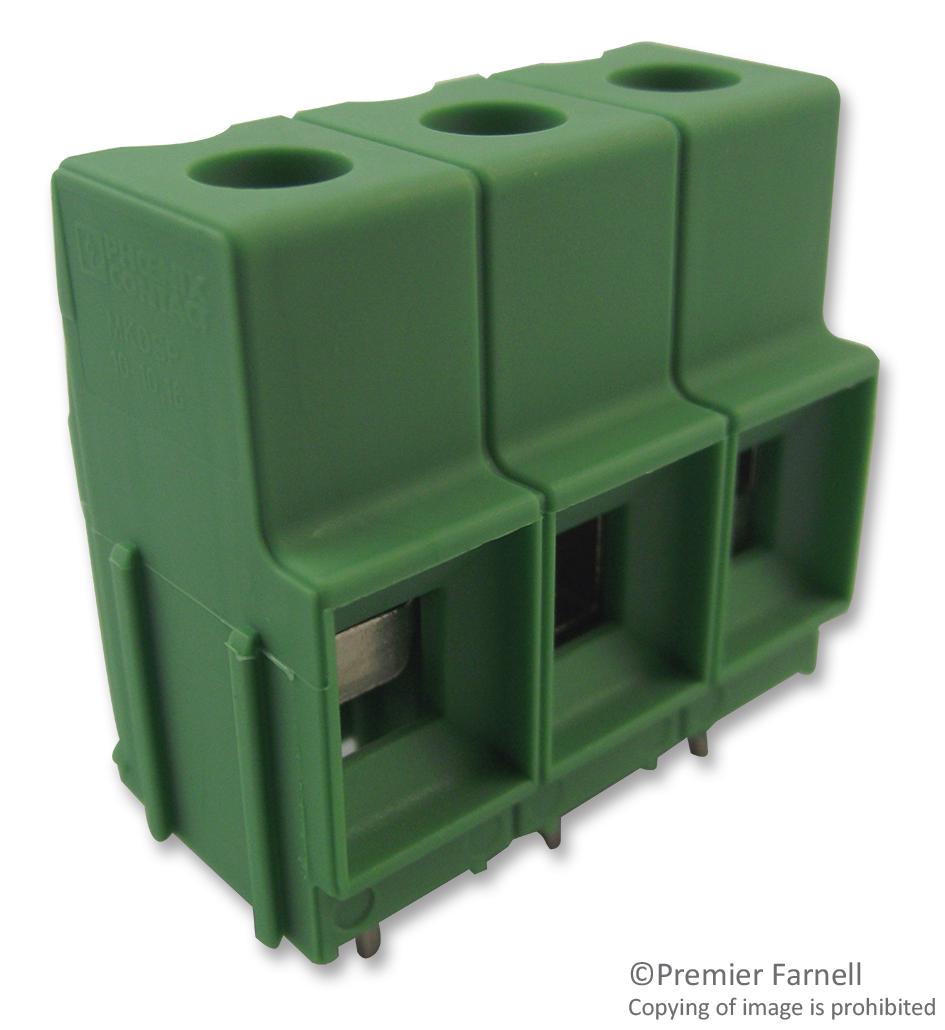

The MKDSP 10N/ 3-10,16 is a 3-position green PCB Terminal Block with tin-plated solder contacts, a polyamide insulator and the M4 screw connection. This 1774137 high-capacity PCB terminal block has screw connection up to 16mm², stranded and a current carrying capacity of 76A. Terminal block bases that can be mounted side by side to create any number of positions. It accepts 20 to 6AWG wire range.
- Integrated test connection
- Individual adjustment of voltage requirements using RZ pitch spacers
- 10mm Stripping length
- UL94V-0 Flammability rating
Industrial
Other details
| Brand | PHOENIX CONTACT |
| Part Number | MKDSP 10N/ 3-10,16 |
| Quantity | Each |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 2038.55 |
| 3-5 | ₹ 2017.75 |
| 5-10 | ₹ 1976.14 |
| 10+ | ₹ 1934.54 |
Bulk discount will be automatically applied during checkout based on quantity.
