Description
Product Overview

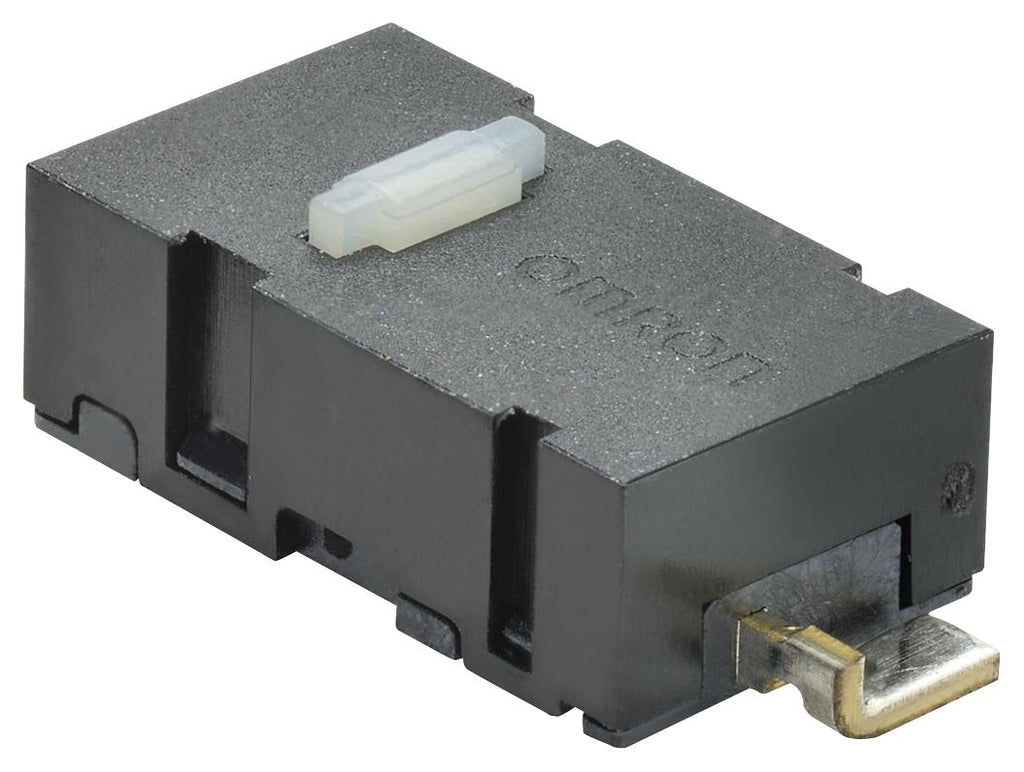

D2LS-11 is a D2LS ultra subminiature basic gaming switch with boss.
- Compact, long-life, surface-mount terminal type, clear click feeling
- High operating force type also achieving long durability, reliable and long-life mouse switch
- Compact size 8.6 × 4.8 × 3.0mm (W × D × H) contributing to down-sizing of module
- Embossed taping package for automatic mounting
- 1.2N {122gf} operating force, 5,000,000 operations min. mechanical/electrical durability
- White button colour, black cover colour
- Crossbar silver contact, 5VDC 1mA minimum applicable load (reference value)
- 6VDC rated voltage, 1mA resistive load
- 100Mohm min. (at 500VDC) insulation resistance, 100mohm max contact resistance (initial value)
- Ambient operating temperature range from -25 to +85°C (at 60%RH max)
Notes
Use the switch within the rated voltage and current ranges, otherwise the switch may have a shortened durability, radiate heat, or burn out.
Product details
Other details
| Brand | OMRON ELECTRONIC COMPONENTS |
| Part Number | D2LS-11 |
| Quantity | Each |
| Technical Data Sheet EN |  |
