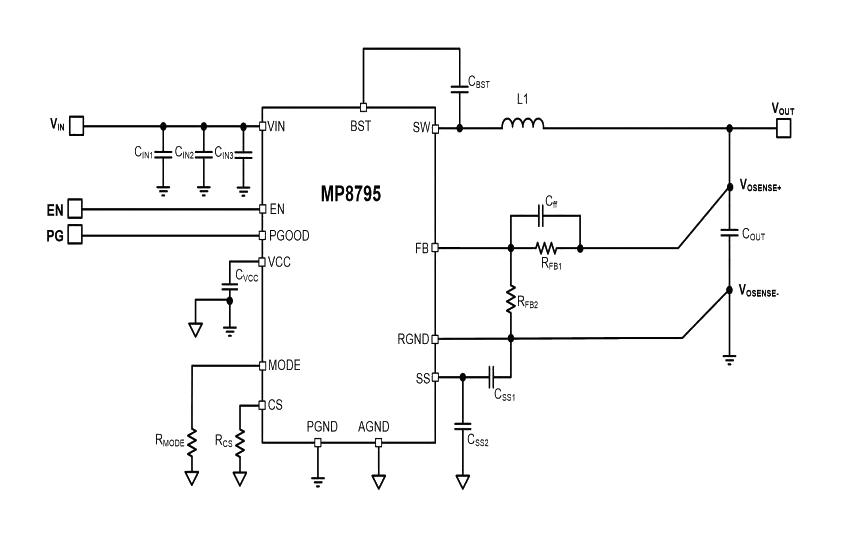

MP8795 is a fully integrated, high frequency, synchronous, buck converter. It offers a very compact solution that achieves up to 15A of output current with excellent load and line regulation over a wide input supply range. The MP8795 adopts an internally compensated constant-on-time (COT) control mode that provides fast transient response and eases loop stabilization. The output voltage start-up ramp is controlled by an internal 1ms timer. It can be increased by adding a capacitor on SS. An open-drain power good (PGOOD) signal indicates if output is within its nominal voltage range. PGOOD is clamped at around 0.7V with an external pull-up voltage when input supply fails to power the MP8795. It requires a minimal number of readily available, standard, external components and is available in a QFN-21 (3mmx4mm) package. Applications include solid-state drives (SSD), flat-panel televisions and monitors, set-top boxes and distributed power systems.
- Wide input voltage range, 2.7V to 16V with external 3.3V VCC bias
- 4V to 16V with internal bias or external 3.3V VCC bias
- Differential output voltage remote sense, programmable accurate current limit level
- Operates at high efficiency over a wide output current load range
- Low RDS(ON) integrated power MOSFETs
- Selectable pulse skip or forced CCM operation
- Excellent load regulation, output voltage discharge
- Non-latch OCP, UVP, UVLO, thermal shutdown and latch-off for OVP
- Output adjustable from 0.6V to 90%*VIN, up to 5.5V max
- Selectable switching frequency from 600KHz, 800KHz and 1000KHz
Footnotes MPS part numbers ending in "-P" and "-Z" are the same parts. P & Z only indicates reel size.
Other details
| Brand |
MONOLITHIC POWER SYSTEMS (MPS) |
| Part Number |
MP8795GLE-P |
| Quantity |
Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |
 |
