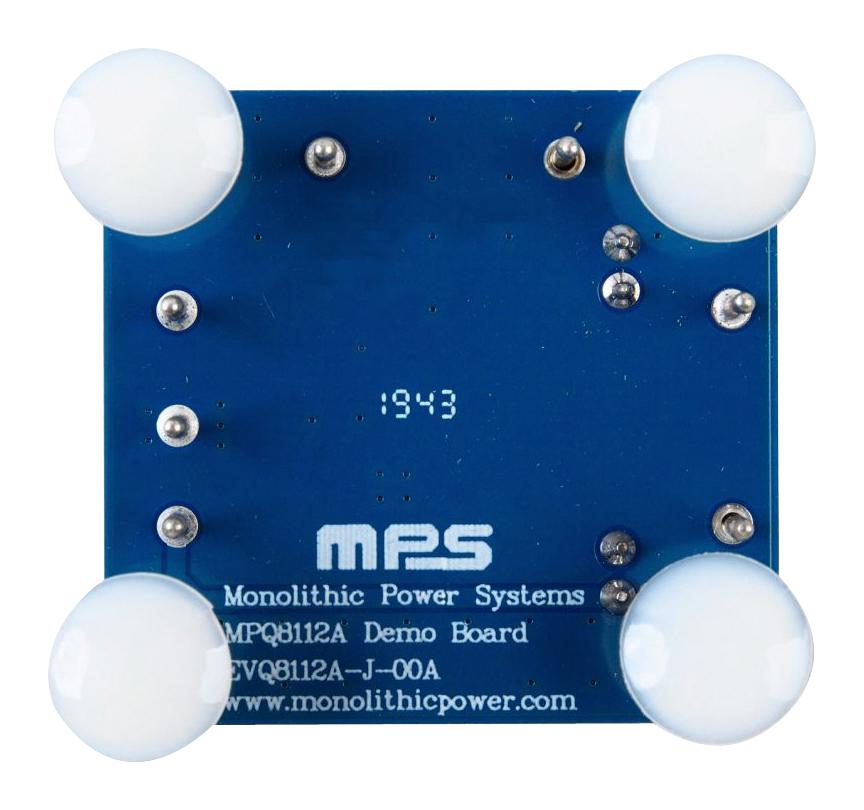

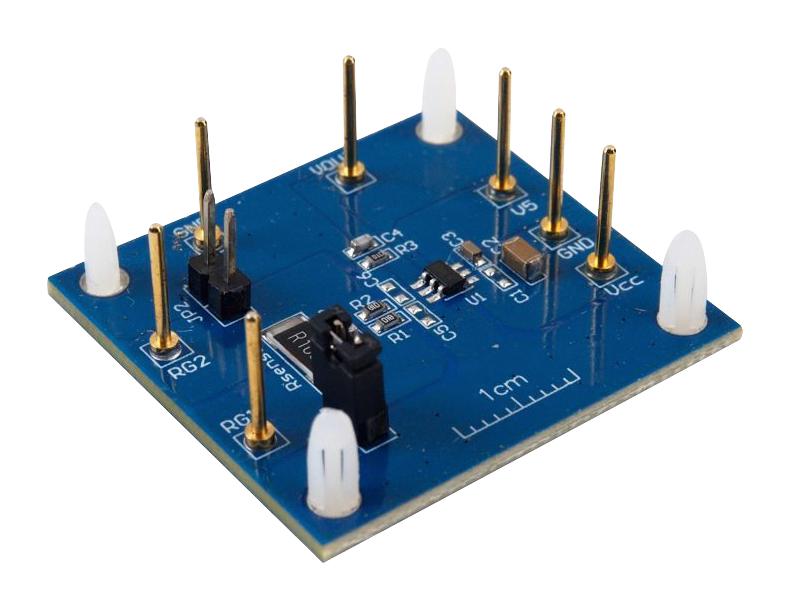

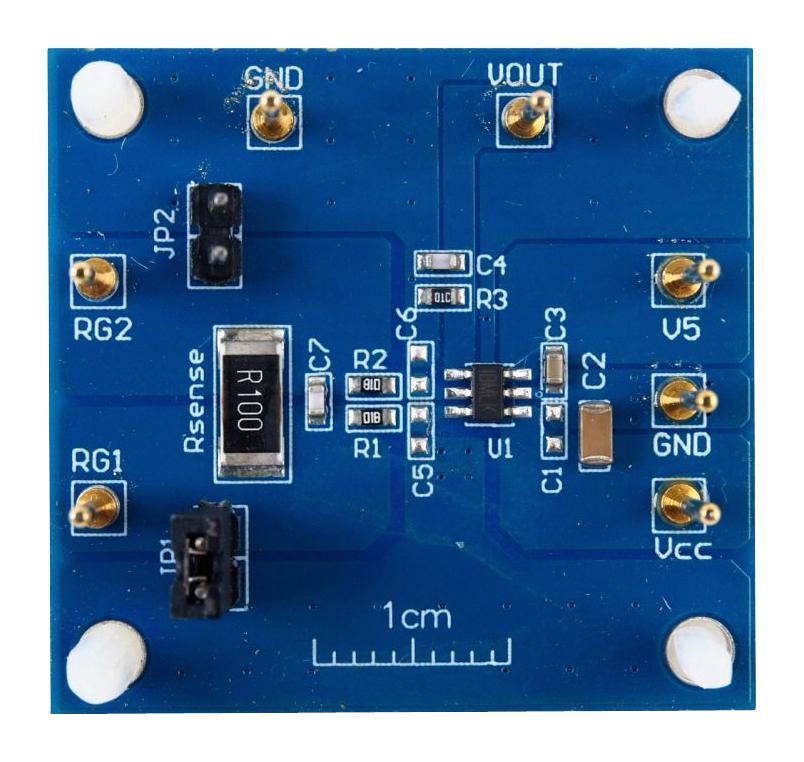

EVQ8112A-J-00A is an evaluation board designed to demonstrate the capabilities of the MPQ8112A, a low-cost, unipolar, high-side current-sense amplifier. The device operates from a 2.7V to 60V supply voltage (VCC) and typically consumes 300µA of current. The common-mode input voltage (VCM) ranges between 0V and 60V, with a 700kHz high bandwidth (BW). The MPQ8112A converts the differential input voltage to a current output. This current is converted back to a voltage with an external load resistor. The MPQ8112A has an adjustable gain based on the external, common input resistors, as well as the load resistor. The EV8112A-J-00A is a fully assembled and tested evaluation board. The MPQ8112A is available in a TSOT23-6L package and AEC-Q100 Grade 1 qualified.
- Low-cost, compact current-sense solution
- 0.2µA typical shutdown current
- 300µV input offset voltage
- ±1% current-sense gain accuracy
- High-current sensing capabilities
Footnotes MPS part numbers ending in "-P" and "-Z" are the same parts. P & Z only indicates reel size.
Other details
| Brand |
MONOLITHIC POWER SYSTEMS (MPS) |
| Part Number |
EVQ8112A-J-00A |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
