Description
Product Overview

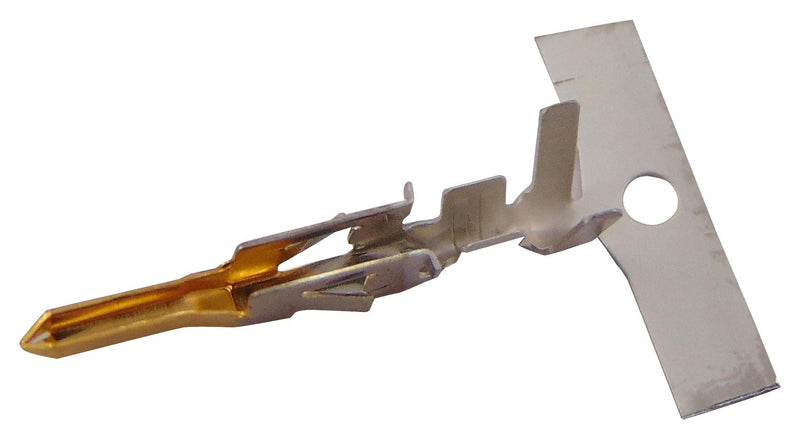

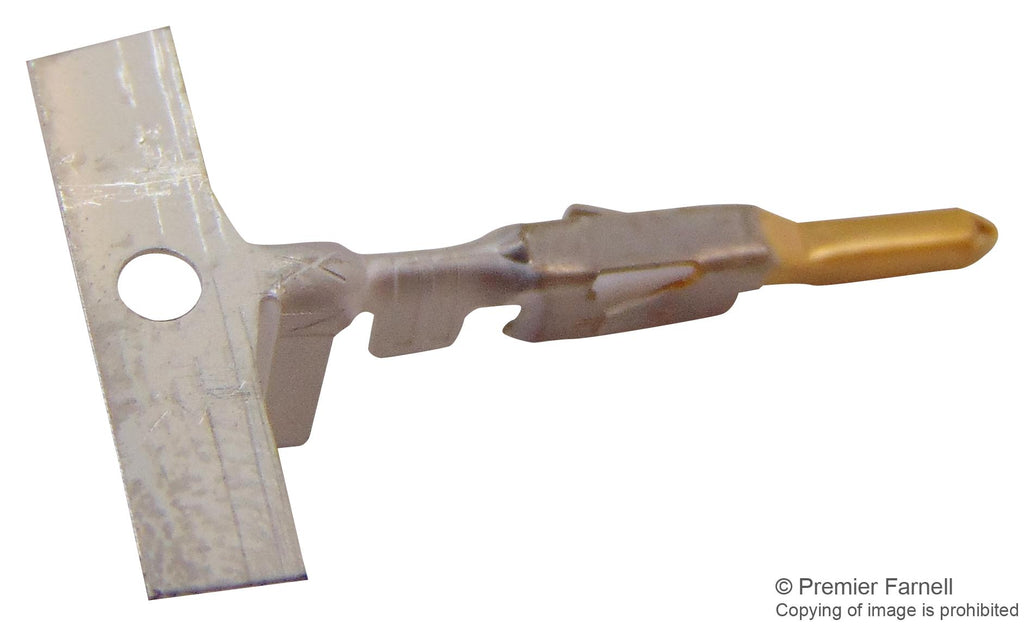

The 39-00-0430 from Molex is a Mini-Fit male crimp terminal made of brass metal with gold plating. It mates with 5556 Mini-Fit crimp terminal and used with 5559 Mini-Fit Jr. plug housing.
- Wire size of 24AWG, 22AWG, 20AWG and 18AWG
- Maximum wire insulation diameter range from 1.3mm to 3.1mm
- Crimp or compression termination interface style
- Maximum voltage is 600V
- Maximum current per contact is 9A
- Embossed tape packaging
Applications
Automotive, Commercial Vehicle, Communications & Networking, Consumer Electronics, Industrial, Medical, Communications & Networking
Product details
Other details
| Brand | MOLEX |
| Part Number | 39-00-0430 |
| Quantity | Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 74.02 |
| 3-5 | ₹ 73.26 |
| 5-10 | ₹ 71.75 |
| 10+ | ₹ 70.24 |
Bulk discount will be automatically applied during checkout based on quantity.
