Maxim Integrated / Analog Devices MAX31329SHLD# MAX31329SHLD# Evaluation Board MAX31329 Clock & Timing Real Time

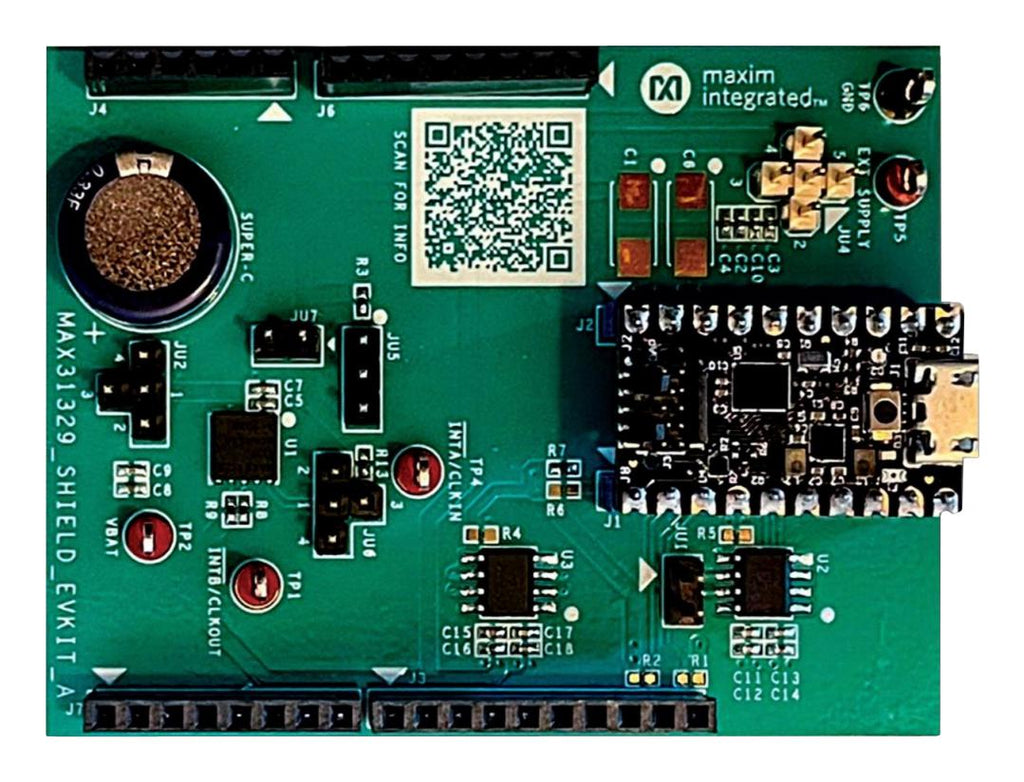

MAX31329 shield is a fully assembled and tested PCB to evaluate the MAX31329, low-cost, I2C real-time clock (RTC) with an integrated crystal oscillator and a crystal. The shield operates from a single supply, either from a USB or an external power supply. The device incorporates a battery input and maintains accurate timekeeping when the main power to the device is interrupted. The integration of the crystal resonator enhances the long-term accuracy of the device and eliminates the external crystal requirement in the system. This device is accessed through an I2C serial interface provided by a MAX32625 PICO board. The shield provides the hardware and software user interface (GUI) necessary to evaluate the MAX31329. It connects to the PC through a MAX32625 PICO board and a Micro-USB cable.

• Easy evaluation of the MAX31329
• Single-supply operation range from +1.6V to +5.5V
• Proven PCB layout
• Fully assembled and tested

Contents

Assembled MAX32625 PICO controller board, Micro-USB cable, Assembled circuit board including MAX31329ELB+.

Other details

Brand	MAXIM INTEGRATED / ANALOG DEVICES
Part Number	MAX31329SHLD#
Quantity	Each
Technical Data Sheet EN
