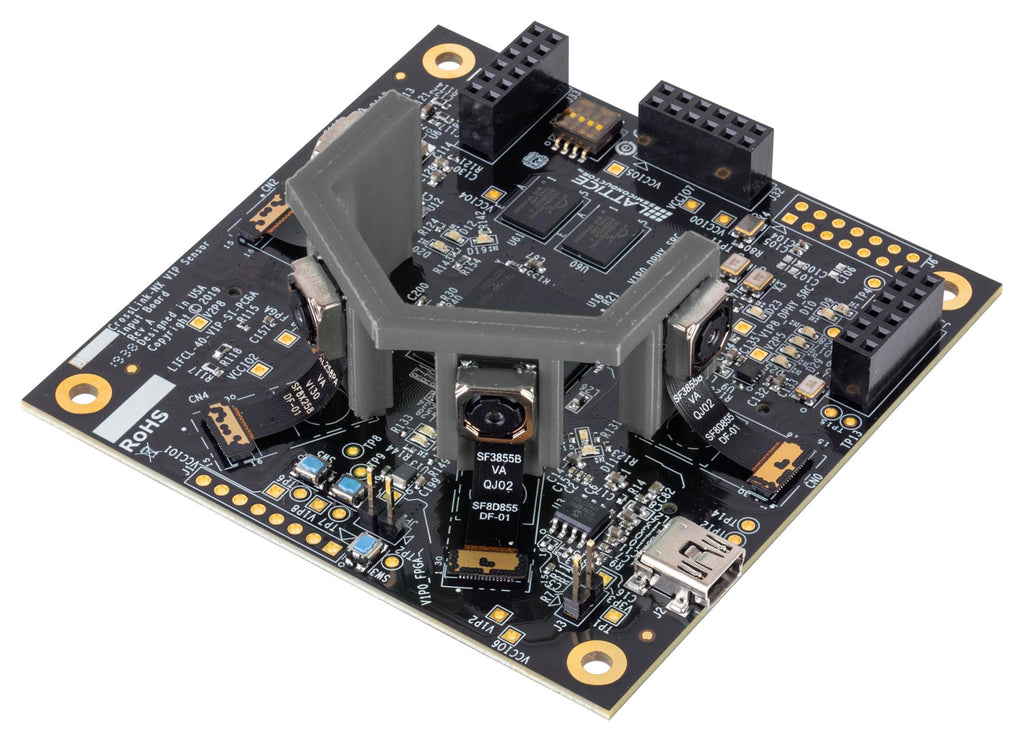

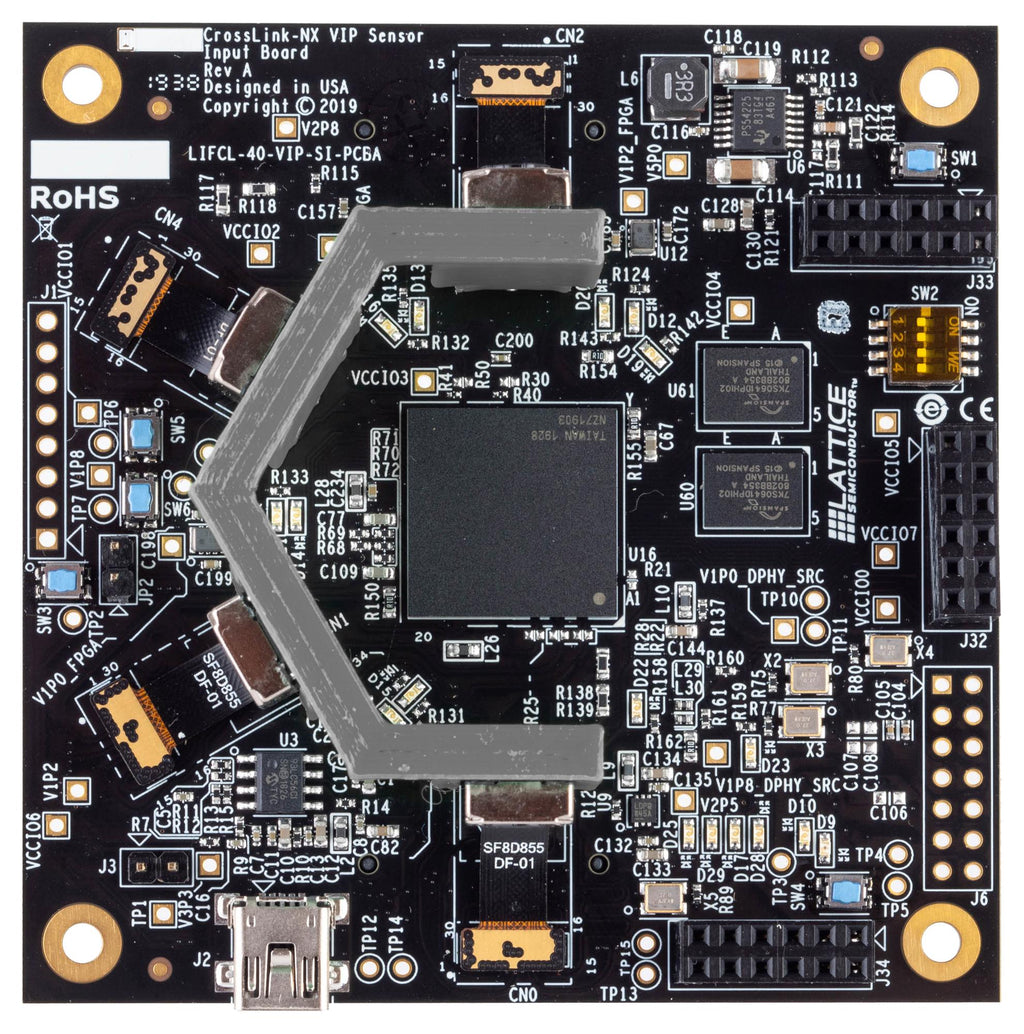

CrossLink-NX� Video Interface Platform (VIP) sensor input board key component is the Lattice CrossLink-NX FPGA, which receives input from the quad on-board Sony IMX258 cameras, and bridges CSI-2 to parallel interfaces. This board is designed to work with the Lattice VIP board interconnect system. Typically, this board is connected to the ECP5 VIP Processor Board, which can be programmed for a wide range of video processing applications.
- Input board for Lattice's Video interface Platform (VIP)
- Seamless connectivity to Embedded Vision Development Kit (sold separately)
- Contains the Lattice CrossLink-NX
- Four Sony IMX258 CMOS MIPI image sensors with 13MP
- Supports 4K2K at 30fps or 1080p @ 60 fps
- Three PMOD interfaces for simplified sensor connectivity
Contents
CrossLink-NX VIP sensor input board, Quick start demo guide.
Product details
| Silicon Manufacturer |
Lattice Semiconductor |
| No. of Bits |
- |
| Silicon Family Name |
CrossLink-NX |
| Core Architecture |
FPGA |
| Core Sub-Architecture |
- |
| Silicon Core Number |
LIFCL-40-CSBGA400 |
| Kit Contents |
CrossLink-NX VIP Sensor Input Board LIFCL-40-CSBGA400, Quick Start Demo Guide |
| Product Range |
- |
Other details
| Brand |
LATTICE SEMICONDUCTOR |
| Part Number |
LIFCL-VIP-SI-EVN |
| Quantity |
Each |
| User Manual EN |
 |
