Description

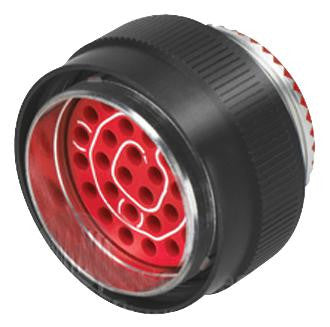

The CN0966A14A07SN-040 from Cinch is CN0966 series, MIL-DTL-26500 series equivalent straight plug with 7 contacts. The CN0966 series self locking plug connectors are qualified to Boeing specifications to satisfy general purpose requirements and unique product challenges for shielding, environmental sealing, fluid resistance and vibration. These high reliability connectors have composite shells which are best for weight sensitive applications. The CN0966 series connectors have well proven electrical capability to withstand extreme shock, exposure and vibration.
- Threaded coupling design
- Optional ground spring, non rotating accessory teeth & advanced fluid resistance elastometers
- Firewall conformance and styles qualified to Boeing BACC63BP series
- Front release crimp contacts
- Operating temperature range from -55°C to +200°C
- Glass filled epoxy insulator, silicone based elastomer grommet & seals
- Insulation resistance is 5000Mohm
- 200 mating cycles and salt spray of 96hour
- Aluminium alloy body material with non-conductive black anodized finish
- Copper alloy crimp socket contacts with gold plating
Applications
Industrial, Commercial
Product details
| Contact Material | Copper Alloy |
| Circular Connector Shell Style | Straight Plug |
| Contact Plating | Gold |
| Insert Arrangement | 14-7 |
| Connector Body Material | Aluminium Alloy Body |
| Service Class | Environmentally Sealed, Firewall |
| Coupling Style | Threaded |
| No. of Contacts | 7Contacts |
| Product Range | CN0966 Series |
| Equivalent Military Specification | MIL-DTL-26500 Series |
| Connector Body Plating | Non-conductive Black Anodise |
| Insert Rotation | N |
| Circular Contact Type | Crimp Socket - Contacts Not Supplied |
Other details
| Brand | CINCH CONNECTIVITY SOLUTIONS |
| Part Number | CN0966A14A07SN-040 |
| Quantity | Each |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 31007.04 |
| 3-5 | ₹ 30690.64 |
| 5-10 | ₹ 30057.85 |
| 10+ | ₹ 29425.05 |
Bulk discount will be automatically applied during checkout based on quantity.
