Description
Product Overview

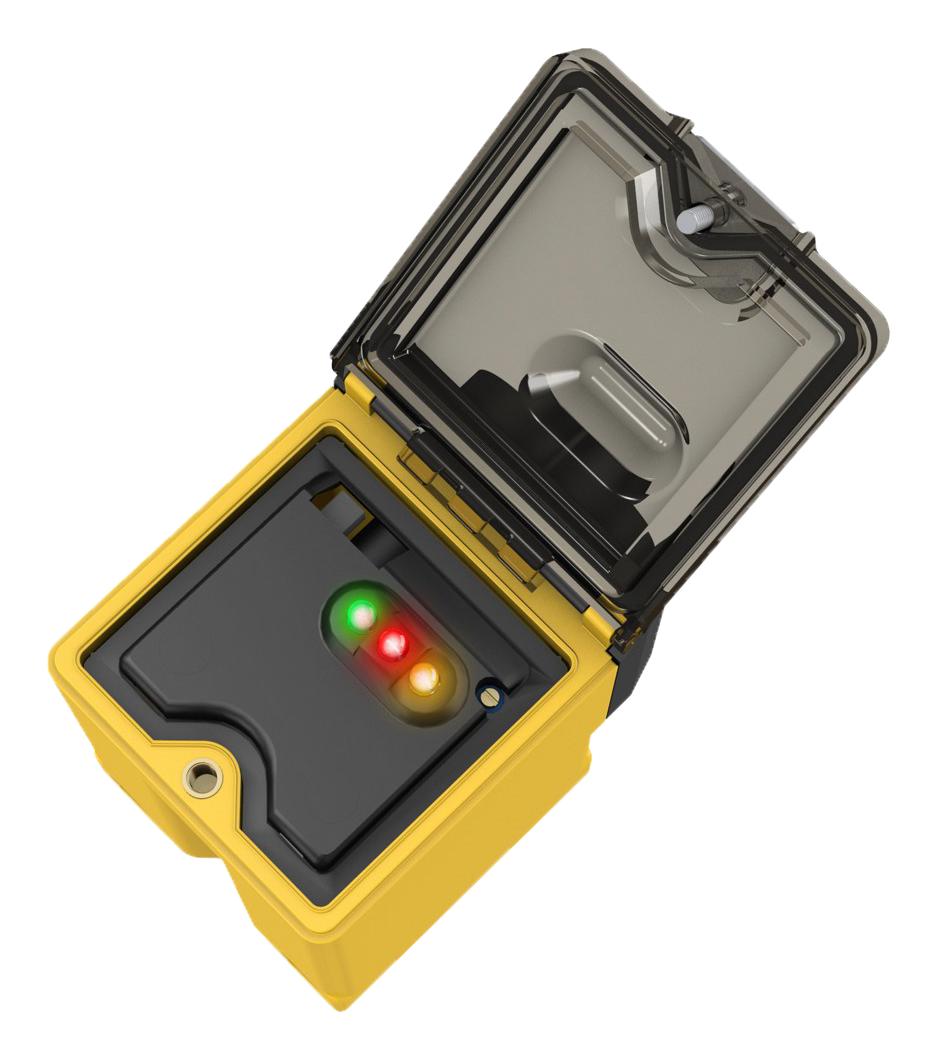

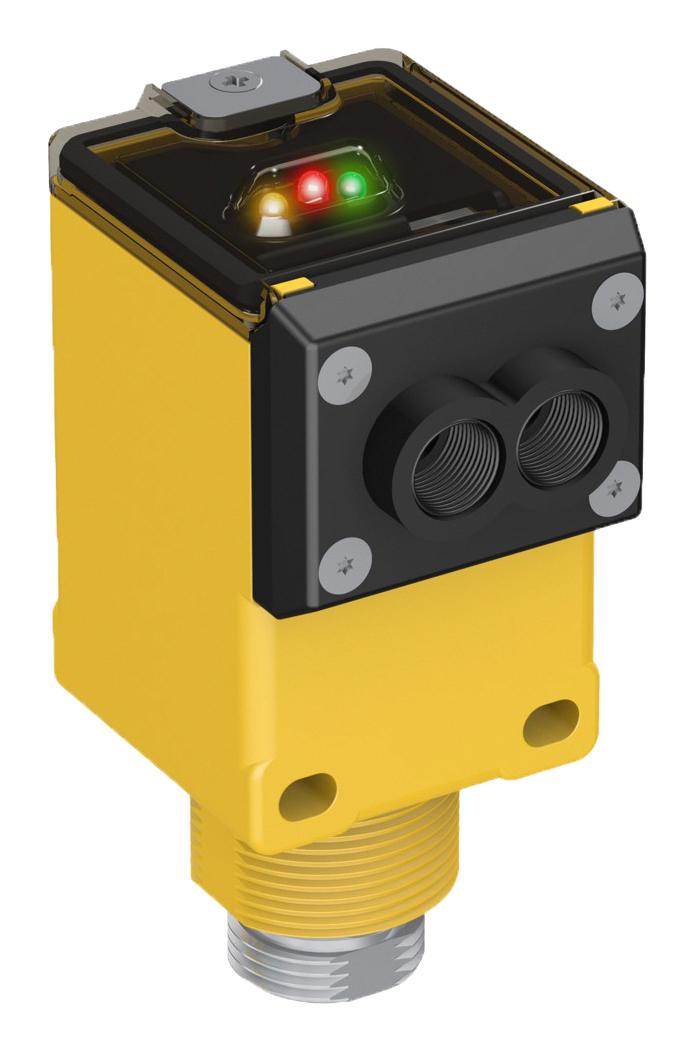

Q45VR3F is a Q45 series diffuse, rugged rectangle sensor. It is an advanced one-piece photoelectric sensor with outstanding optical performance and an extremely rugged design.
- Universal supply voltage range from 12 to 250VDC or 24 to 250VAC
- Highly visible power, signal (AID� System 1), and output indicator LEDs
- Designed to withstand 1200psi washdown; exceeds its NEMA 6P and IEC IP67 rating
- 5-wire 2m (6.5 ft) cable
- SPDT electro-mechanical relay output type
- IP67 rating, NEMA 4X rating, AC/DC universal power, rectangular housing style
- Discrete input output, SPDT E/M relay output
- Cable connection
- 15ms mini response time, 90% at 50°C maximum operating relative humidity
- Operating temperature range from -25°C to 55°C
Warnings
Not to be used for personnel protection. Never use this device as a sensing device for personnel protection. Doing so could lead to serious injury or death.
Product details
Other details
| Brand | BANNER ENGINEERING |
| Part Number | Q45VR3F |
| Quantity | Each |
| Technical Data Sheet EN |  |
