Description
Product Overview

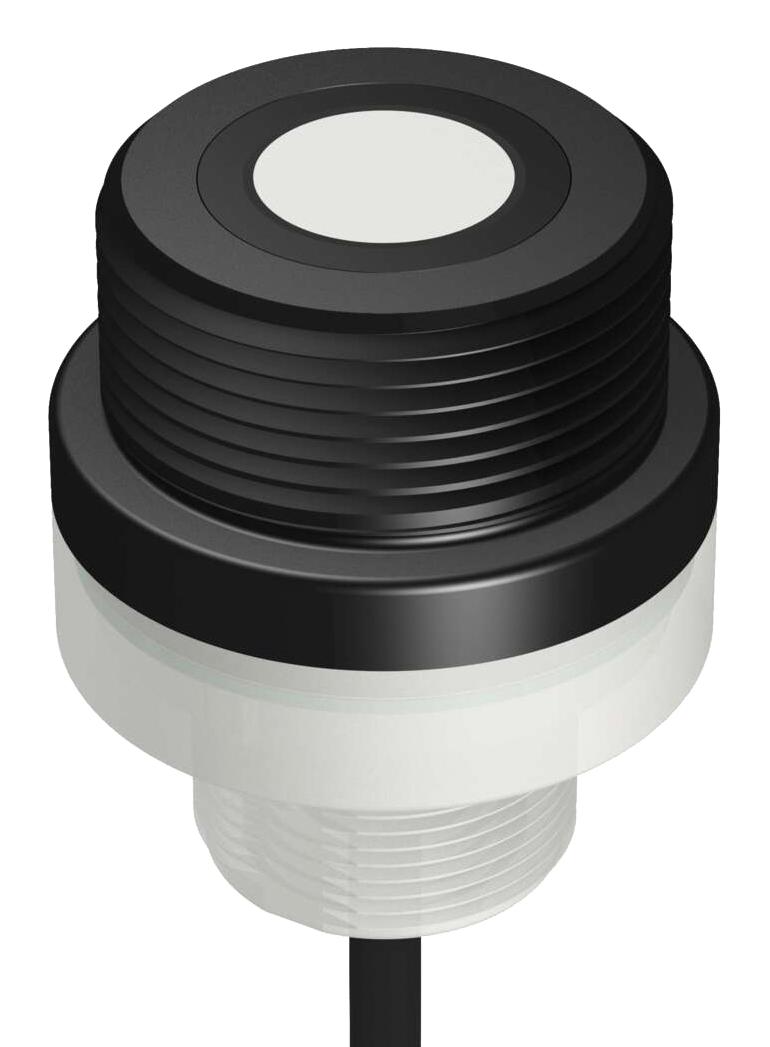

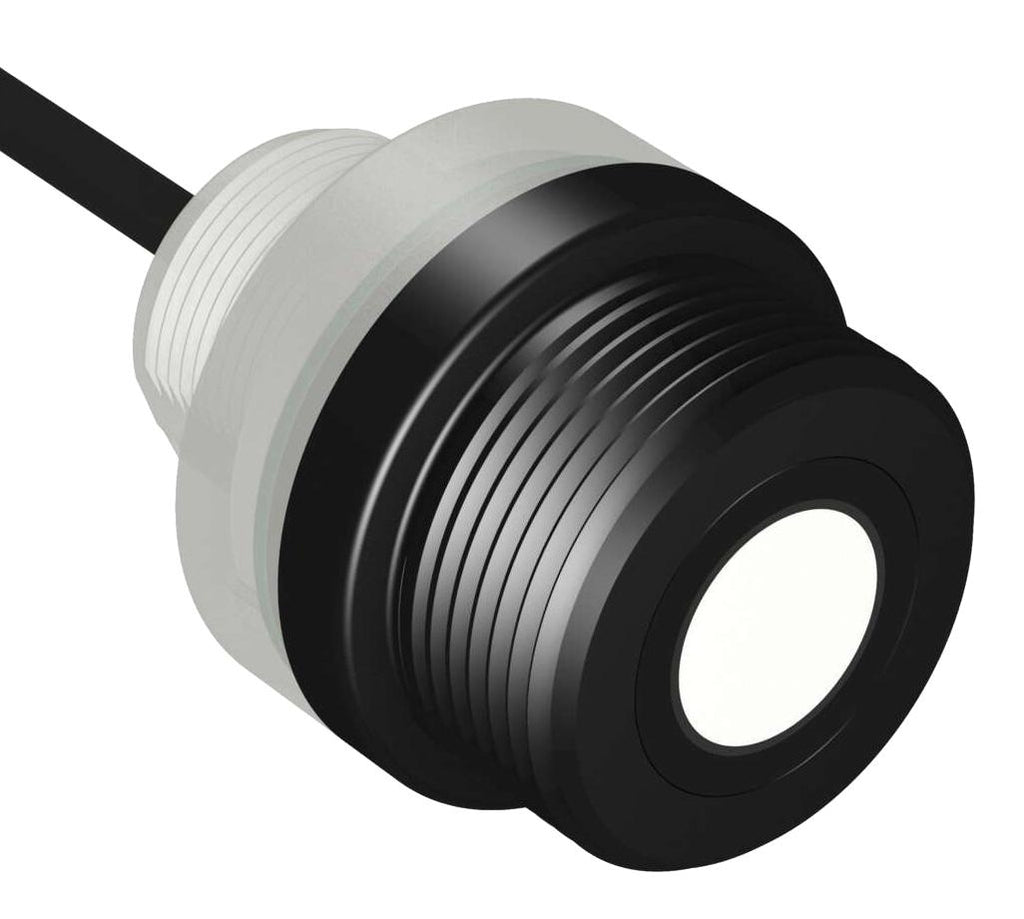

K50UX2ARA is a Sure Cross® U-GAGE K50U ultrasonic sensor. The Sure Cross® K50U sensor works in a variety of environments to provide a measurement of the distance between the target and the sensor. It is designed for use with MultiHop Modbus radios, creating a cost-effective solution for monitoring remote or mobile tanks and totes.
- Monitor wirelessly to avoid long cable runs, threaded housing for easy installation
- Easily monitor remote and mobile tanks and totes, built-in temperature compensation
- Completely wireless solution with 2+ year battery life at default sample rates
- Provides a distance measurement from the target to the sensor
- Rugged design for demanding sensing environments; rated IEC IP67, NEMA 6P
- Functions as a Modbus server device using RS-485, PBT polyester housing
- Designed to interface to the RS-485 Modbus network through a Euro-style cordset
- 3.6 to 5.5VDC or 10 to 30VDC supply voltage, 11.3mA at 30VDC active comms current
- Sensing range: 3.94inch to 39.4inch, 224KHz ultrasonic frequency
- Operating temperature range from -40°C to +70°C
Warnings
Never use this device as a sensing device for personnel protection. Doing so could lead to serious injury or death.
Product details
Other details
| Brand | BANNER ENGINEERING |
| Part Number | K50UX2ARA |
| Quantity | Each |
| Technical Data Sheet EN |  |
