ANALOG DEVICES DS9120P+ Evaluation Board, RJ11 to Socket Board, 1 Wire Products, With Easy to Use PC Environment

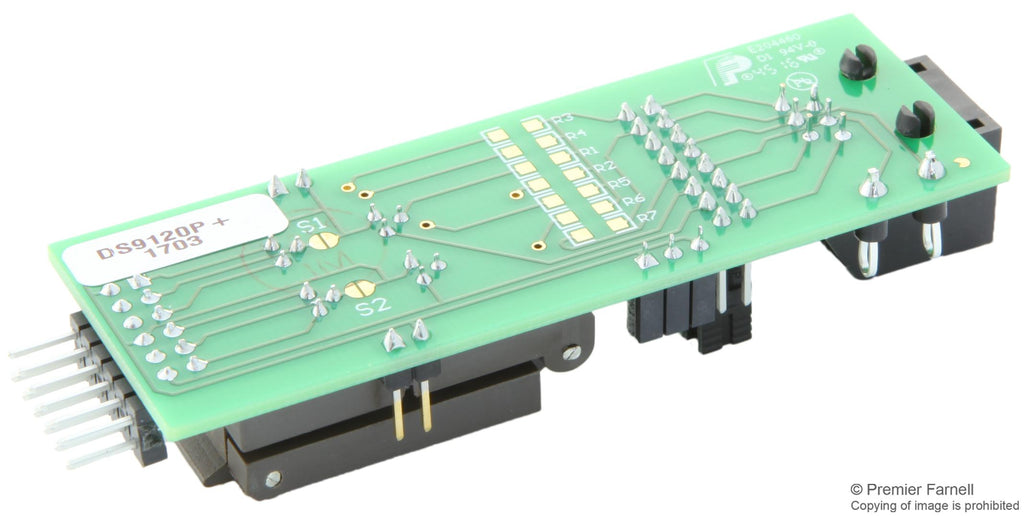

The DS9120P+ is a socket board for evaluating 1-wire devices. It is a RJ11 to socket board that provides hardware connectivity necessary to evaluate and operate 1-wire products in an easy to use PC environment. Additionally, the socket board can be readily used with DS9481R USB to 1-wire adapter to create a 1-wire PC programmer for 1-wire EEPROM and one time programmable (OTP)/EPROM devices. The DS9120P socket board for TSOC package requires jumpers for communication. The only reason for these jumpers is for debugging or to break out the RJ11 signals.

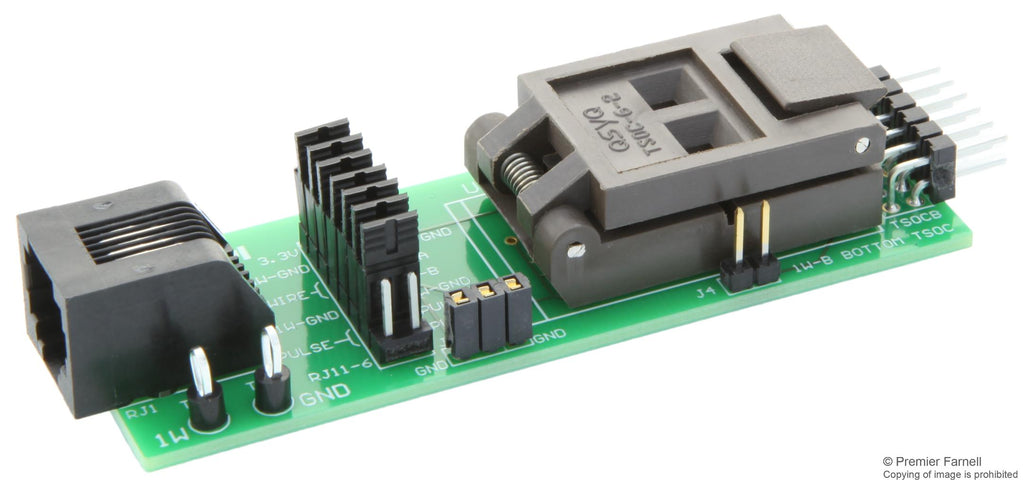

• Dual TSOC and TO-92 sockets with RJ11 connector
• Fully compliant with DS9481R USB to 1-wire adapter
• Convenient on-board test points
• Jumper disconnect/connect functionality
• Meets RJ11 1-wire interface standard
• Includes connections for various OTP EPROM programming

Applications

Industrial

Contents

TSOC, TO-92 socket board, RJ11 cable assembly IO interconnect, Instruction sheet.
