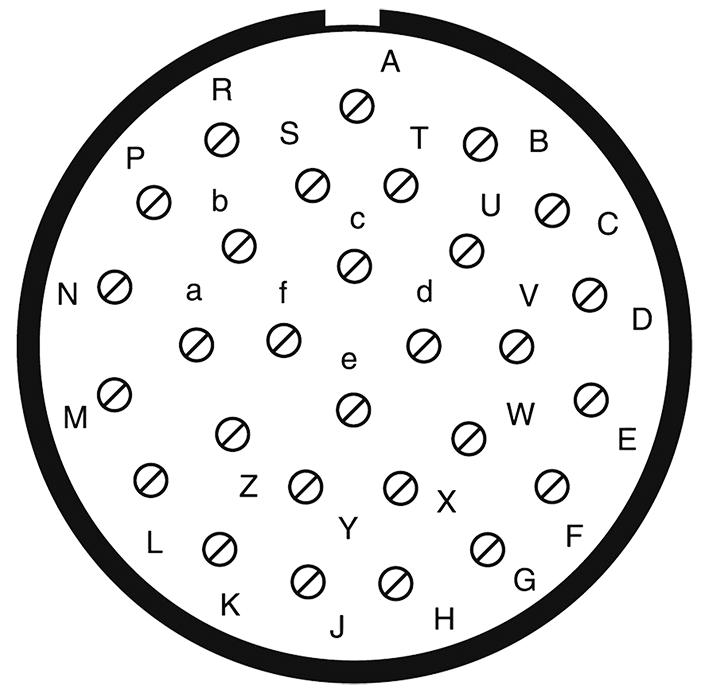

AMPHENOL AEROSPACE CTV06RW-25-29SA-LC Circular Connector, CTV Series, MIL-DTL-38999 Series III, Straight Plug, 29 Contacts

The CTV06RW-25-29SA-LC from Amphenol is Tri-Start CTV series, MIL-DTL-38999 Series III equivalent straight plug with 29 contacts. Tri-Start CTV series connectors are high performance MIL-DTL-38999 Series III equivalent composite connectors which are available in wide range of shell materials and finishes in 9 shell sizes (09 to 25) with 48, 500, 2000 hour salt spray plating exposure (MIL-STD-1344A method 1001 condition C). These connectors offer high density contact arrangements in a miniature circular shell and combines high coupling durability. It is designed to withstand the extreme shock, exposure and vibration. These connectors are fully intermatable and intermountable with all other manufacturer�s MIL-DTL-38999 Series III connectors.

• High reliability, moisture and corrosion resistant
• Outstanding EMI, RFI shielding protection (100MHz to 10GHz)
• 500 mating cycles, high durability versions are available with 1500 mating cycles
• Operates at extreme temperature range of -65°C to +200°C based on shell finish
• Minimum insulation resistance is 5000Mohm (at 25°C)
• Scoop proof to eliminate the possibility of contact damage
• Self locking connector system, triple start threaded coupling
• Thermoplastic clips moulded directly with insert
• Composite body material with olive drab chromate over cadmium plating
• Copper alloy crimp socket contacts with gold plating

Applications

Commercial, Industrial
